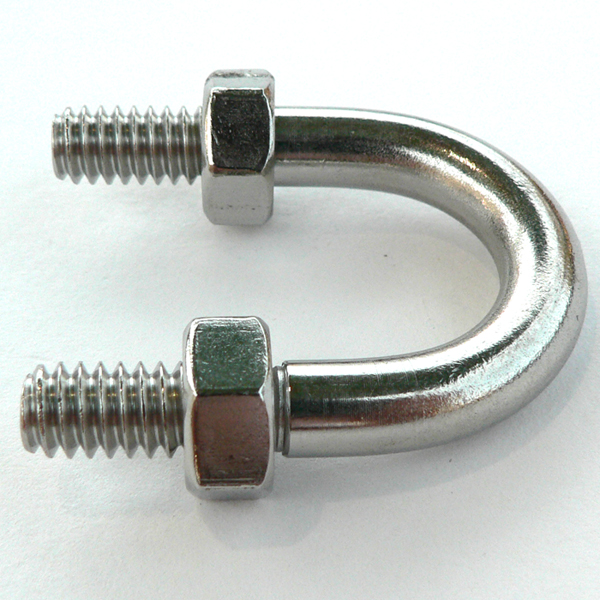

U-Bolt

Model: S0350-xxxx

These are the highest quality U-Bolts on the market. Formed from 304 Stainless, these are functional, useful and strong parts. Each set comes with two nuts.

See also: Square U-Bolt, U-Bolt with Plate, and Long U-bolt.


		Stainless Steel Facts See our All About Stainless Guide to learn about the materials from which these parts are made.



		Hardware Terms See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.


		Suggested Tools These tools and materials are suggested for installation.

U-Bolt Standard 1/4" 3/8" x 1-1/4"	$1.61
U-Bolt Standard 1/4" 1/2" x 1-3/4"	$1.84
U-Bolt Standard 1/4" 3/4" x 2"	$1.92
U-Bolt Standard 1/4" 1" x 2-3/4"	$2.15
U-Bolt Standard 1/4" 1-1/4 " x 3"	$2.19
U-Bolt Standard 1/4" 1-1/2" x 3-1/4"	$2.22
U-Bolt Standard 5/16" 1/2" x 2-3/16"	$2.62
U-Bolt Standard 5/16" 1" x 2-3/16"	$2.66
U-Bolt Standard 5/16" 1-1/4" x 1-3/4"	$2.88
U-Bolt Standard 5/16" 1-1/2" x 2-3/4"	$2.93
U-Bolt Standard 5/16" 2" x 3-3/16"	$3.23
U-Bolt Standard 5/16" 2-1/2" x 3-3/4"	$3.53
U-Bolt Standard 3/8" 1/2" x 2-1/4"	$3.23
U-Bolt Standard 3/8" 3/4" x 2-1/2"	$3.33
U-Bolt Standard 3/8" 1" x 2-1/2"	$3.40
U-Bolt Standard 3/8" 1-1/4" x 2-3/4"	$3.50
U-Bolt Standard 3/8" 1-1/2" x 2-5/8"	$3.53
U-Bolt Standard 3/8" 2" x 3-1/8"	$3.67
U-Bolt Standard 3/8" 2-1/2" x 3-5/8"	$4.33
U-Bolt Standard 3/8" 3" x 4-1/8"	$4.07
U-Bolt Standard 1/2" 2-1/2" x 4-1/2"	$9.27
U-Bolt Standard 1/2" 3" x 5"	$10.01
U-Bolt Standard 1/2" 3-1/2" x 5-1/2"	$10.93
U-Bolt Standard 1/2" 4" x 6"	$12.03
U-Bolt Standard 1/2" 5" x 7-1/4"	$14.11
U-Bolt Standard 1/2" 6" x 8-3/8"	$15.96
U-Bolt Standard 1/2" 8" x 10-3/8"	$19.36
In Stock - Usually ships in 1-2 business days.	Add to Cart

Learn More: Product Details | Accessories | Tools and Installation Materials

DIMENSIONS

Part #	A-Size	Thread	B	C	D	Pipe	WLL
S0350-07010	1/4"	1/4-20	0.75"	0.63"	1.25"	3/8"	435 lb
S0350-07013	1/4"	1/4-20	1.00"	1.00"	1.75"	1/2"	435 lb
S0350-07020	1/4"	1/4-20	1.13"	1.00"	2.00"	3/4"	435 lb
S0350-07025	1/4"	1/4-20	1.50"	1.38"	2.75"	1"	435 lb
S0350-07032	1/4"	1/4-20	1.75"	1.38"	3.00"	1-1/4"	435 lb
S0350-07038	1/4"	1/4-20	2.00"	1.38"	3.25"	1-1/2"	435 lb
S0350-08013	5/16"	5/16-18	1.00"	1.38"	2.19"	1/2"	610 lb
S0350-08026	5/16"	5/16-18	1.50"	1.00"	2.19"	1"	610 lb
S0350-08032	5/16"	5/16-18	1.75"	1.13"	2.69"	1-1/4"	610 lb
S0350-08038	5/16"	5/16-18	2.00"	1.00"	2.69"	1-1/2"	610 lb
S0350-08050	5/16"	5/16-18	2.50"	1.00"	3.19"	2"	610 lb
S0350-08065	5/16"	5/16-18	3.00"	1.00"	3.69"	2-1/2"	610 lb
S0350-10013	3/8"	3/8-16	1.00"	1.25"	2.25"	1/2"	1090 lb
S0350-10020	3/8"	3/8-16	1.25"	1.25"	2.25"	3/4"	1090 lb
S0350-10025	3/8"	3/8-16	1.50"	1.25"	2.50"	1"	1090 lb
S0350-10032	3/8"	3/8-16	1.75"	1.25"	2.75"	1-1/4"	1090 lb
S0350-10038	3/8"	3/8-16	2.00"	1.25"	2.63"	1-1/2"	1090 lb
S0350-10050	3/8"	3/8-16	2.50"	1.25"	3.13"	2"	1090 lb
S0350-10065	3/8"	3/8-16	3.00"	1.25"	3.63"	2-1/2"	1090 lb
S0350-10075	3/8"	3/8-16	3.50"	1.25"	4.13"	3"	1090 lb
S0350-13065	1/2"	1/2-13	3.00"	1.63"	4.50"	2-1/2"	2020 lb
S0350-13075	1/2"	1/2-13	3.50"	1.50"	5.00"	3"	2020 lb
S0350-13090	1/2"	1/2-13	4.00"	1.50"	5.50"	3-1/2"	2020 lb
S0350-13100	1/2"	1/2-13	4.50"	1.50"	6.00"	4"	2020 lb
S0350-13125	1/2"	1/2-13	5.63"	2.00"	7.25"	5"	2020 lb
S0350-13150	1/2"	1/2-13	6.75"	2.00"	8.38"	6"	2020 lb
S0350-13200	1/2"	1/2-13	8.75"	2.00"	10.38	8"	2020 lb

DETAILS

304 Stainless Steel, Formed
