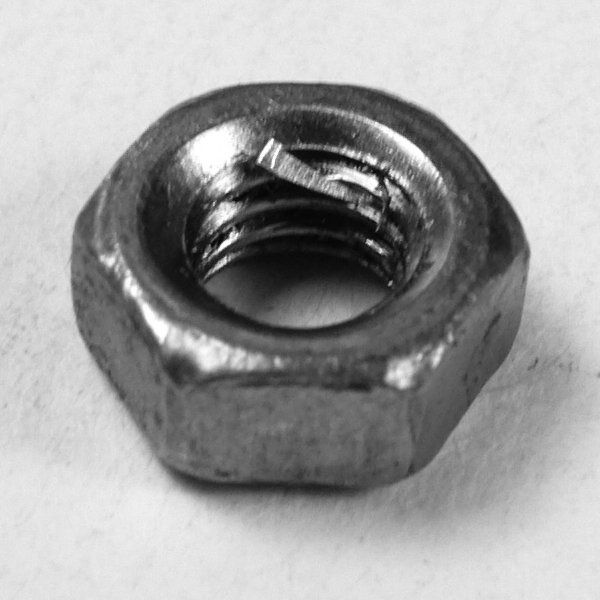

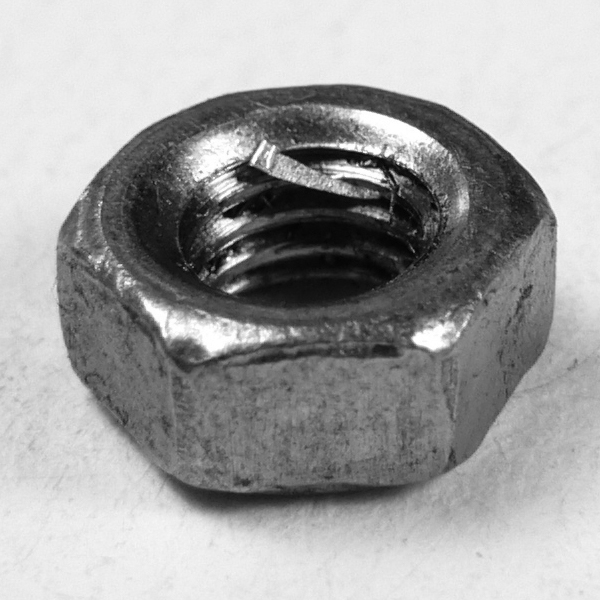

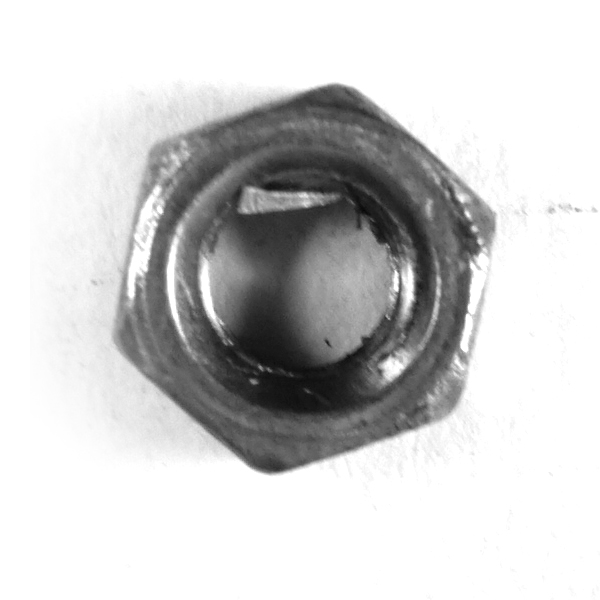

Part View Part View 2 Part View 3

Turnbuckle Nuts

Model: S0302-000x, S0303-000x, S0304-000x, S0305-000x

Turnbuckle nuts in both right-hand (RH) and left-hand (LH), available both in fine thread (UNF) and course (UNC).


		Stainless Steel Facts See our All About Stainless Guide to learn about the materials from which these parts are made.



		Hardware Terms See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.


		Suggested Tools These tools and materials are suggested for installation.

Turnbuckle Nut LH - 3/16" UNC	$.60
Turnbuckle Nut LH - 1/4" UNC	$.76
Turnbuckle Nut LH - 5/16" UNC	$1.22
Turnbuckle Nut LH - 3/8" UNC	$1.52
Turnbuckle Nut LH - 1/2" UNC	$3.04
Turnbuckle Nut LH - 5/8" UNC	$4.48
Turnbuckle Nut LH - 3/4" UNC	$6.16
Turnbuckle Nut LH - 1" UNC	$8.28
Turnbuckle Nut RH - 3/16" UNC	$.23
Turnbuckle Nut RH - 1/4" UNC	$.29
Turnbuckle Nut RH - 5/16" UNC	$.46
Turnbuckle Nut RH - 3/8" UNC	$.57
Turnbuckle Nut RH - 1/2" UNC	$1.90
Turnbuckle Nut RH - 5/8" UNC	$2.81
Turnbuckle Nut RH - 3/4" UNC	$3.87
Turnbuckle Nut RH - 1" UNC	$5.19
Turnbuckle Nut LH - 3/16" UNF	$.67
Turnbuckle Nut LH - 1/4" UNF	$.87
Turnbuckle Nut LH - 5/16" UNF	$1.27
Turnbuckle Nut LH - 3/8" UNF	$1.46
Turnbuckle Nut LH - 1/2" UNF	$1.94
Turnbuckle Nut LH - 5/8" UNF	$3.12
Turnbuckle Nut LH - 3/4" UNF	$7.22
Turnbuckle Nut RH - 3/16" UNF	$.48
Turnbuckle Nut RH - 1/4" UNF	$.67
Turnbuckle Nut RH - 5/16" UNF	$.93
Turnbuckle Nut RH - 3/8" UNF	$1.14
Turnbuckle Nut RH - 1/2" UNF	$1.46
Turnbuckle Nut RH - 5/8" UNF	$2.28
Turnbuckle Nut RH - 3/4" UNF	$5.42
In Stock - Usually ships in 1-2 business days.	Add to Cart

Learn More: Product Details | Accessories | Tools and Installation Materials

DIMENSIONS

Item Number	A - Size	B - Wrench	Thread	Weight
S0302-0005	3/16"	0.31" 5/16"	LH - UNC 10 - 24	.25/100
S0304-0005	3/16"	0.31" 5/16"	LH - UNF 10 - 32	.25/100
S0303-0005	3/16"	0.31" 5/16"	RH - UNC 10 - 24	.25/100
S0305-0005	3/16"	0.31" 5/16"	RH - UNF 10 - 32	.25/100
S0302-0007	1/4"	0.39" 3/8"	LH - UNC 1/4" - 20	.42/100
S0304-0007	1/4"	0.39" 3/8"	LH - UNF 1/4" - 28	.42/100
S0303-0007	1/4"	0.44" 7/16"	RH - UNC 1/4" - 20	.42/100
S0305-0007	1/4"	0.44" 7/16"	RH - UNF 1/4" - 28	.42/100
S0302-0008	5/16"	0.47" 1/2"	LH - UNC 5/16" - 18	.82/100
S0304-0008	5/16"	0.47" 1/2"	LH - UNF 5/16" - 24	.82/100
S0303-0008	5/16"	0.47" 1/2"	RH - UNC 5/16" - 18	.82/100
S0305-0008	5/16"	0.47" 1/2"	RH - UNF 5/16" - 24	.82/100
S0302-0010	3/8"	0.54" 9/16"	LH - UNC 3/8" - 16	1.5/100
S0304-0010	3/8"	0.54" 9/16"	LH - UNF 3/8" - 24	1.5/100
S0303-0010	3/8"	0.54" 9/16"	RH - UNC 3/8" - 16	1.5/100
S0305-0010	3/8"	0.54" 9/16"	RH - UNF 3/8" - 24	1.5/100
S0302-0013	1/2"	0.75" 3/4"	LH - UNC 1/2" - 13	3.5/100
S0304-0013	1/2"	0.75" 3/4"	LH - UNF 1/2" - 20	3.5/100
S0303-0013	1/2"	0.75" 3/4"	RH - UNC 1/2" - 13	3.5/100
S0305-0013	1/2"	0.75" 3/4"	RH - UNF 1/2" - 20	3.5/100
S0302-0016	5/8"	0.94" 15/16"	LH - UNC 5/8" - 11	7.0/100
S0304-0016	5/8"	0.94" 15/16"	LH - UNF 5/8" - 18	7.0/100
S0303-0016	5/8"	0.94" 15/16"	RH - UNC 5/8" - 11	7.0/100
S0305-0016	5/8"	0.94" 15/16"	RH - UNF 5/8" - 18	7.0/100
S0302-0020	3/4"	1.13" 1-1/8"	LH - UNC 3/4" - 10	13.0/100
S0304-0020	3/4"	1.09" 1-1/8"	LH - UNF 3/4" - 16	10.0/100
S0303-0020	3/4"	1.13" 1-1/8"	RH - UNC 3/4" - 10	13.0/100
S0305-0020	3/4"	1.09" 1-1/8"	RH - UNF 3/4" - 16	10.0/100
S0302-0025	1"	1.51" 1-1/2"	LH - UNC 1" - 8	31.0/100
S0303-0025	1"	1.51" 1-1/2"	RH - UNC 1" - 8	31.0/100
S0302-0028	1-1/8"	1.65" 1-5/8"	LH - UNC 1-1/8" - 7	40.0/100
S0303-0028	1-1/8"	1.65" 1-5/8"	RH - UNC 1-1/8" - 7	40.0/100
S0302-0032	1-1/4"	1.77" 1-3/4"	LH - UNC 1-1/4" - 7	58.0/100
S0303-0032	1-1/4"	1.77" 1-3/4"	RH - UNC 1-1/4" - 7	58.0/100
UNC = Course Thread UNF = Fine Thread LH = Left-hand RH = Right-hand

DETAILS

316 Stainless Steel, Formed
