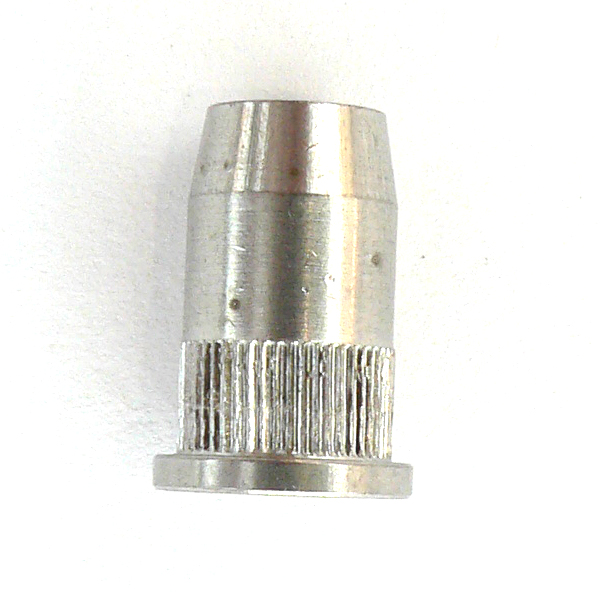

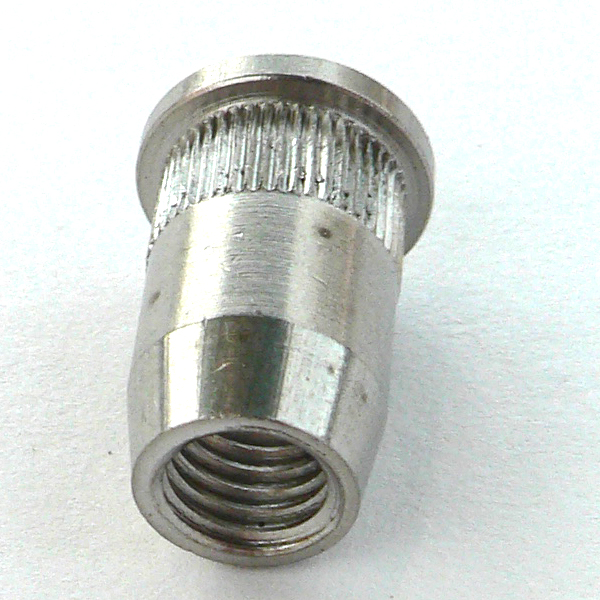

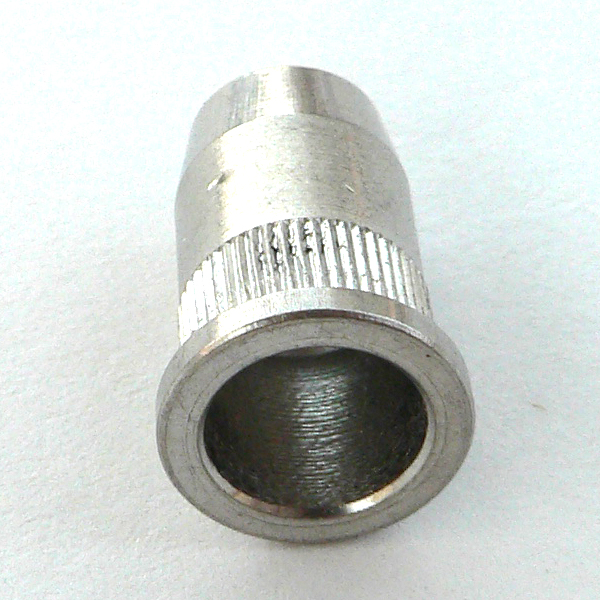

Part View Part View 2 Part View 3
[]

Rivet Nut Insert

Model: S0381/S0382-xxxx

For installation in thin wall metal plates or tubes.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Rivet Nut Insert UNF - 1/4" RH $1.88
Rivet Nut Insert UNF - 1/4" LH $1.88
Rivet Nut Insert UNC - 3/16" UNC $1.60
Rivet Nut Insert UNC - 1/4" UNC $1.60
Rivet Nut Insert UNC - 5/16" UNC $2.34
Rivet Nut Insert UNC - 3/8" UNC $3.53
Rivet Nut Insert UNC - 1/4" LHUNC $1.88
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C D THREAD WT
UNF, RIGHT AND LEFT
S0381-0007 1/4" 0.43" 0.63" 0.14" 1/4" x 28 RH 0.01
S0381-L007 1/4" 0.43" 0.63" 0.14" 1/4" x 28 LH 0.01
UNC, RIGHT AND LEFT
S0382-0005 3/16" 0.35" 0.52" 0.12" 10 x 24 RH 0.01
S0382-0007 1/4" 0.43" 0.63" 0.14" 1/4" x 20 RH 0.01
S0382-L007 1/4" 0.43" 0.63" 0.14" 1/4" x 20 LH 0.01
S0382-0008 5/16" 0.55" 0.70" 0.16" 5/16" x 18 RH 0.01
S0382-0010 3/8" 0.63" 0.90" 0.22" 3/8" x 16 RH 0.02

DETAILS

  • 316 Stainless Steel, Stamped
[]
