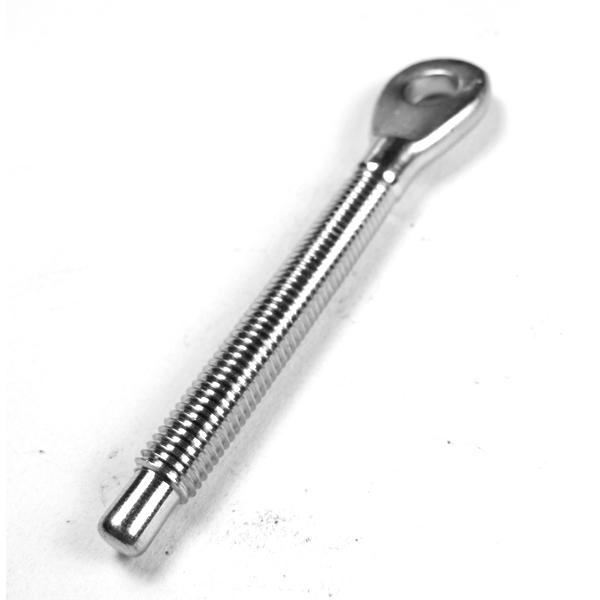

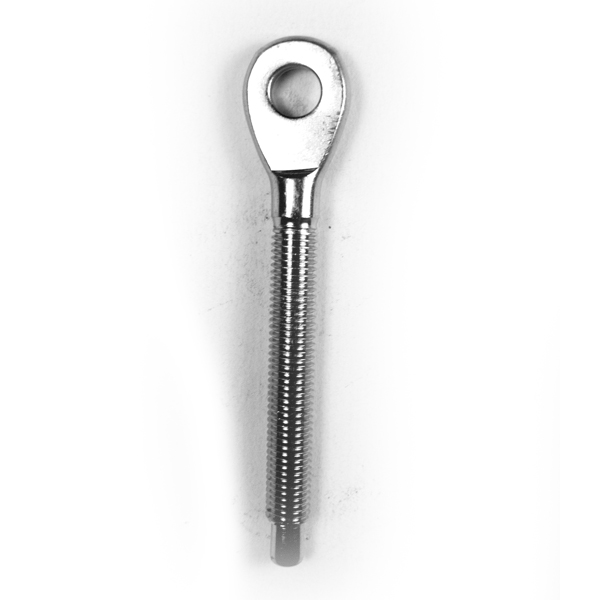

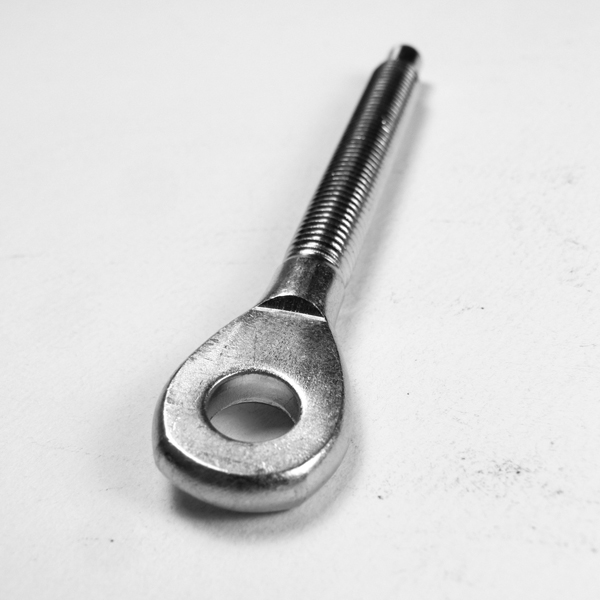

Part View Part View 2 Part View 3
[]

Eye End

Model: S0318-000x

All threads are standard UNF. Eye is forged and machined.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Eye End UNF RH - 1/4" $8.99
Eye End UNF RH - 5/16" $9.56
Eye End UNF RH - 3/8" $13.53
Eye End UNF RH - 1/2" $23.05
Eye End UNF RH - 5/8" $45.26
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C D WLL WT
S0318-0007 1/4" 1.86" 0.26" 0.16" 500 0.04
S0318-0009 5/16" 2.26" 0.34" 0.16" 900 0.07
S0318-0010 3/8" 2.50" 0.41" 0.22" 1,400 0.11
S0318-0013 1/2" 3.14" 0.51" 0.32" 2,300 0.22
S0318-0016 5/8" 4.00" 0.57" 0.38" 3,500 0.45

DETAILS

  • 316 Stainless Steel, Forged
  • Manufactured by Suncor Stainless
[]
