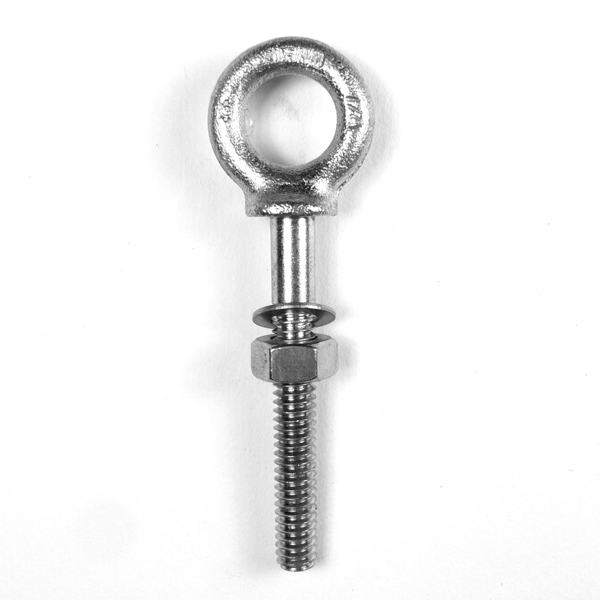

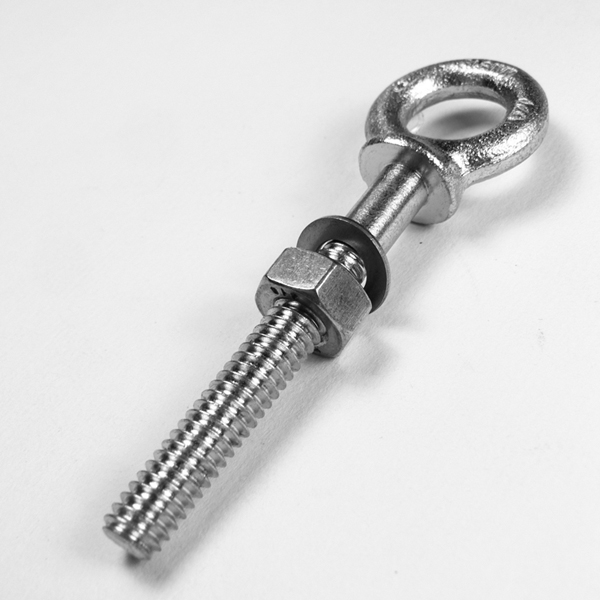

Forged Shoulder Eye Bolt

Model: S0319-000x

These Special Eye Bolts are heavy duty, with shoulder. Eye bolts are fully threaded with standard "unc" thread. Rod is threaded and welded into precision cast eye nuts. One nut and washer are included.

Unwelded Eye Bolts, Metric Welded Eye Bolts, and Welded Eye Bolts.


		Stainless Steel Facts See our All About Stainless Guide to learn about the materials from which these parts are made.



		Hardware Terms See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.


		Suggested Tools These tools and materials are suggested for installation.

Unfortuantely, these bolts are out of stock due to supplier problems.

Learn More: Product Details | Accessories | Tools and Installation Materials

DIMENSIONS

ITEM	A	B	C	D	THREAD	WLL
S0314-0705	1/4"	1.50"	2.00"	0.50"	1/4"-20	500
S0314-0710	1/4"	2.50"	4.00"	0.50"	1/4"-20	500
S0314-0806	5/16"	1.50"	2.25"	0.63"	5/16"-	18	800
S0314-0810	5/16"	2.50"	4.25"	0.63"	5/16"-	18	800
S0314-1006	3/8"	1.50"	2.50"	0.75"	3/8"-	16	1,200
S0314-1012	3/8"	2.50"	4.50"	0.75"	3/8"-	16	1,200
S0314-1304	1/2"	1.25"	1.50"	1.00"	1/2"-	13	2,150
S0314-1308	1/2"	1.50"	3.25"	1.00"	1/2"-	13	2,150
S0314-1315	1/2"	3.00"	6.00"	1.00"	1/2"-	13	2,150
S0314-1603	5/8"	0.75"	1.00"	1.25"	5/8"-	11	3,440
S0314-1605	5/8"	1.75"	2.00"	1.25"	5/8"-	11	3,440
S0314-1610	5/8"	2.00"	4.00"	1.25"	5/8"-	11	3,440
S0314-1615	5/8"	3.00"	6.00"	1.25"	5/8"-	11	3,440
S0314-2003	3/4"	0.88"	1.00"	1.50"	3/4"-	10	5,140
S0314-2005	3/4"	1.75"	2.00"	1.50"	3/4"-	10	5,140
S0314-2012	3/4"	2.00"	4.50"	1.50"	3/4"-	10	5,140
S0314-2015	3/4"	3.00"	6.00"	1.50"	3/4"-	10	5,140
S0314-2213	7/8"	2.50"	5.00"	1.75"	7/8"-	9	7,130
S0314-2504	1"	1.38"	1.44"	2.00"	1"-	8	9,370
S0314-2506	1"	2.25"	2.50"	2.00"	1"-	8	9,370
S0314-2515	1"	3.00"	6.00"	2.00"	1"-	8	9,370

DETAILS

316 Stainless Steel, Cast
