Home --> Products --> Hardware --> Threaded Hardware --> Lag Eye Screw, Stainless Steel

[]
Additional Images:
Part View Part View 2 Part View 3
[]

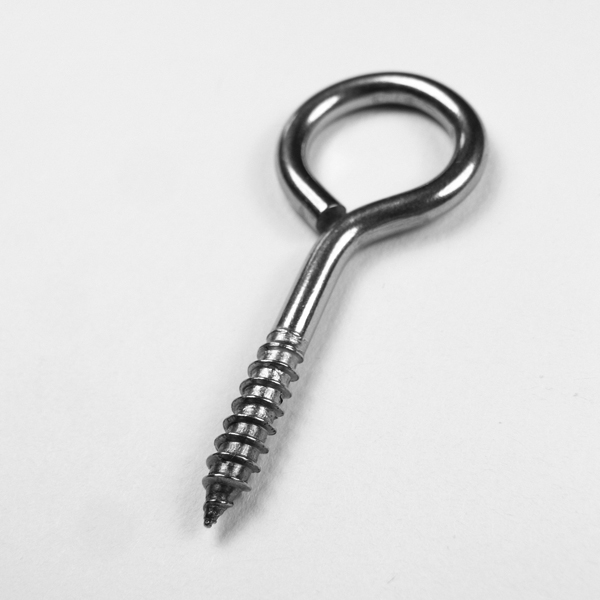

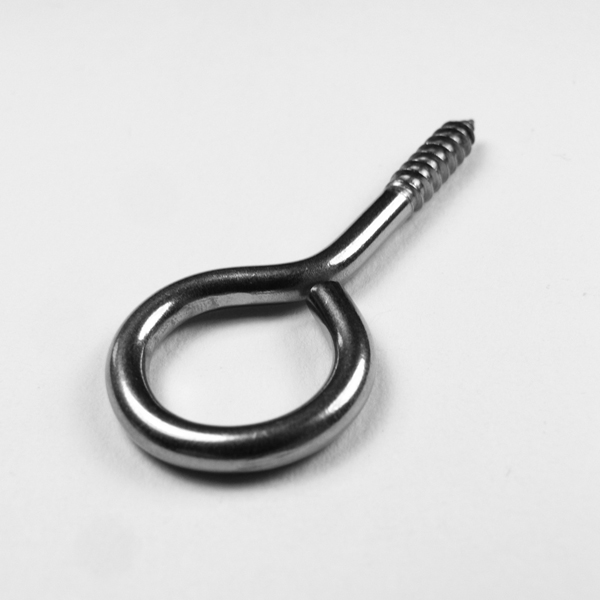

Lag Eye Screw

Model: S0327-xxxxx

This is a useful termination and point of attachment which can be installed in wood (especially redwood) and concrete or mortar when accompanied with an appropriate insert. Tethers, chain assemblies and plant hangers can be attached to these. For a larger ring, see our Lag Ring Bolt.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Lag Eye Screw 5/32" x 1" $0.76
Lag Eye Screw 1/4" x 1-1/4" $1.52
Lag Eye Screw 1/4" x 2-1/2" $1.60
Lag Eye Screw 1/4" x 3" $2.43
Lag Eye Screw 1/4" x 4" $2.51
Lag Eye Screw 5/16" x 1-1/4" $2.66
Lag Eye Screw 5/16" x 2-1/2" $2.57
Lag Eye Screw 5/16" x 3" $3.50
Lag Eye Screw 5/16" x 4" $4.03
Lag Eye Screw 5/16" x 5" $4.33
Lag Eye Screw 3/8" x 2-1/2" $5.32
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C D
S0327-04025 5-32 0.63 0.75 0.44
S0327-07032 1/4 0.75 1.00 0.63
S0327-07065 1/4 1.87 2.50 0.58
S0327-07075 1/4 1.87 3.00 0.50
S0327-07100 1/4 1.87 4.00 0.50
S0327-08032 5/16 0.75 1.25 0.63
S0327-08065 5/16 1.25 2.50 0.63
S0327-08075 5/16 1.75 3.00 0.63
S0327-08100 5/16 1.75 4.00 0.63
S0327-08125 5/16 1.75 5.00 0.63
S0327-10065 3/8 1.75 2.50 0.75

DETAILS

  • 316 Stainless Steel, Cast
  • Manufactured by Suncor Stainless
[]
