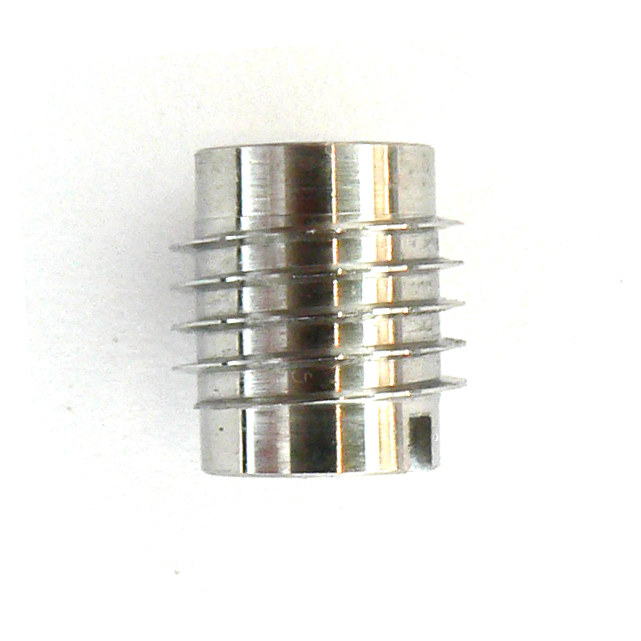

Thread Insert

Model: S0385-000x

This special fitting with "knife threads" on the outside and standard unc on the inside. Used to connect horizontal wire rope to wooden posts and to attach other fasteners to wood, plastic or carbon fiber.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Thread Insert 3/16" $3.99
Thread Insert 1/4" $3.99
Thread Insert 5/16" $5.70
Thread Insert 3/8" $4.28
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C SIZE WT
S0385-0005 3/16" 0.46" 0.50" 3/8" 0.01
S0385-0007 1/4" 0.46" 0.50" 3/8" 0.01
S0385-0008 5/16" 0.60" 0.63" 1/2" 0.02
S0385-0010 3/8" 0.60" 0.63" 1/2" 0.03

DETAILS

  • 316 Stainless Steel, Formed
[]
