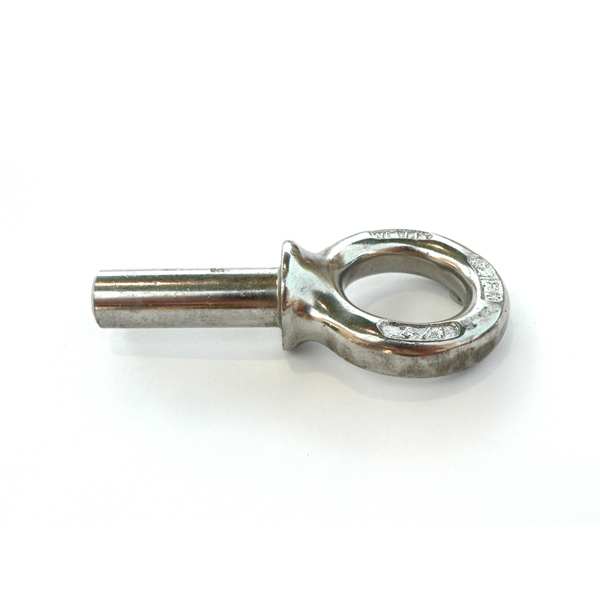

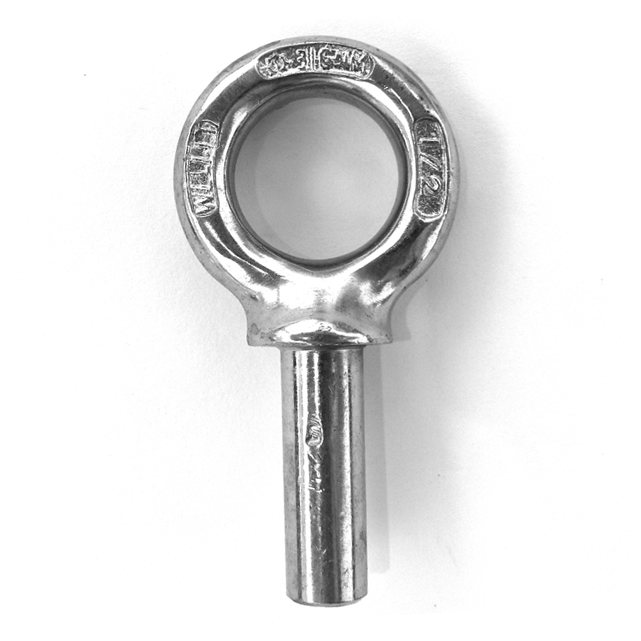

Shoulder Eye Rivet

Model: S0314-R000x

Eye rivets have forged markings of 316-nm, size and wll in tons. Underside of shoulder and shaft are machined for perfect seating and fit.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Shoulder Eye Rivet 1/2" x 1-1/2" $14.21
Shoulder Eye Rivet 1/2" x 3-1/4" $17.84
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C WT
S0314-R1304 1/2" 1.50" 1.00" 0.27
S0314-R1308 1/2" 3.25" 1.00" 0.38

DETAILS

  • 316-NM Stainless Steel
[]
