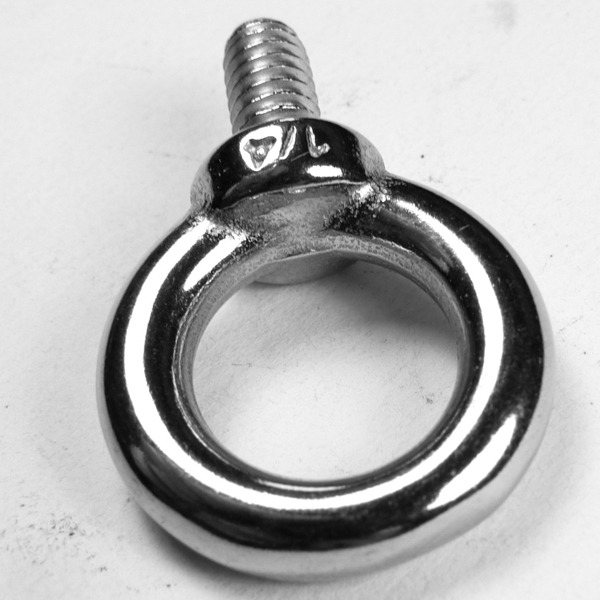

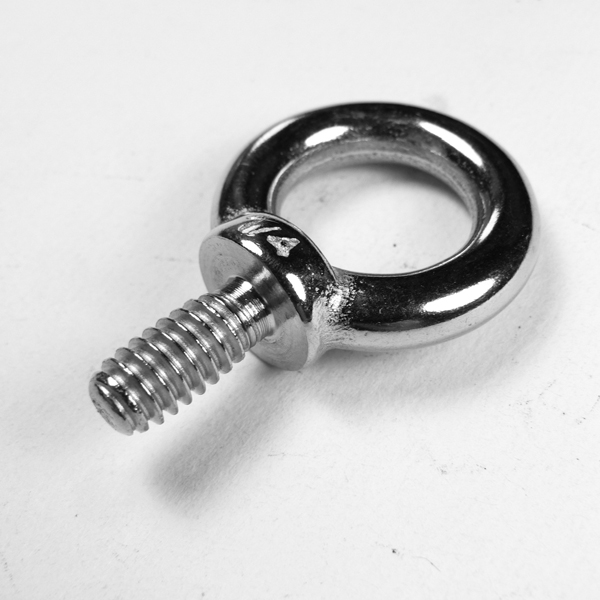

Lifting Eye Bolt

Model: S0316-xxxx

Heavy duty Machine LIfting Eye Bolt. Threads are UNC. 316 Stainless steel

[]
[]
[] []
[]
Accessories
Get what you need to use and enjoy this product
[]
[]
[] []
[]
Installation
See the Learning Center for more information on how to use and install this product.
[]
[] []
[]
Suggested Tools
These tools and materials are suggested for installation.


Lifting Eye Bolt - 1/4" $4.85
Lifting Eye Bolt - 5/16" $5.76
Lifting Eye Bolt - 3/8" $6.61
Lifting Eye Bolt - 1/2" $9.06
Lifting Eye Bolt - 5/8" $15.68
Lifting Eye Bolt - 3/4" $21.95
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C D WLL WT
S0316-0007 1/4" 1.09" 0.62" 0.53" 400 0.05
S0316-0008 5/16" 1.34" 0.75" 0.58" 700 0.07
S0316-0010 3/8" 1.68" 0.95" 0.71" 1,000 0.13
S0316-0013 1/2" 2.00" 1.14" 0.86" 2,000 0.30
S0316-0016 5/8" 2.42" 1.32" 1.02" 3,200 0.45
S0316-0020 3/4" 2.78" 1.57" 1.14" 4,700 0.79
S0316-0025 1" 3.54" 1.95" 1.31" 7,500 1.65

DETAILS

  • 316 Stainless Steel, Cast
  • Manufactured by Suncor Stainless
[]
