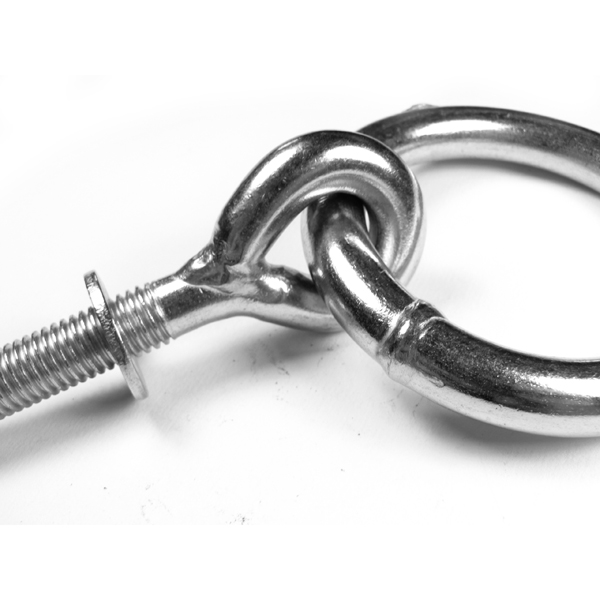

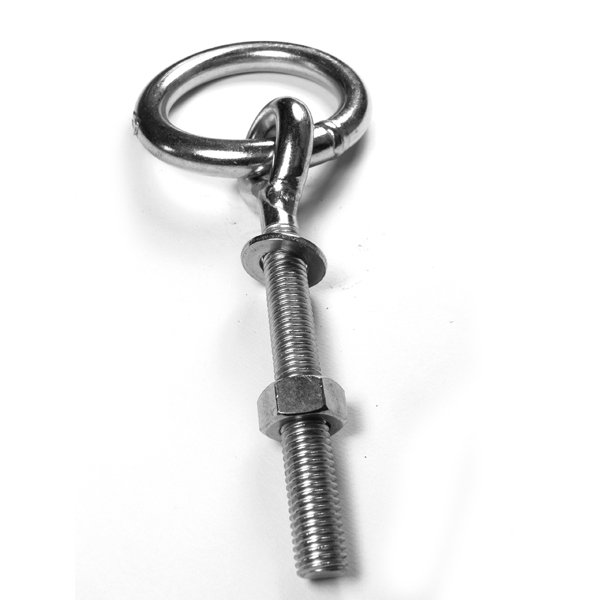

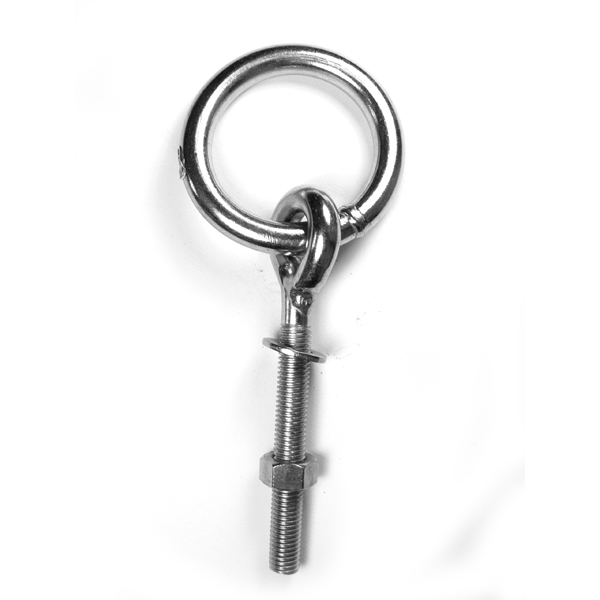

Part View Part View 2 Part View 3
[]

Ring Bolt

Model: S0331-xxxx

Welded eye bolt with welded ring; all threads are standard UNC; one nut and one washer are included.

[]
[]
[] []
[]
Accessories
Get what you need to use and enjoy this product
[]
[]
[] []
[]
Installation
See the Learning Center for more information on how to use and install this product.
[]
[] []
[]
Suggested Tools
These tools and materials are suggested for installation.


Ring Bolt - 1/4" x 2" $7.81
Ring Bolt - 5/16" x 2-1/4" $10.05
Ring Bolt - 3/8" x 4-1/4" $19.42
Ring Bolt - 3/8" x 2-1/2" $18.64
Ring Bolt - 1/2" x 6" $32.62
Ring Bolt - 1/2" x 3-1/4" $29.74
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C D E WLL WT
S0331-0750 1/4" 1.50 2.00" 1.75" 2.94" 250 0.12
S0331-0855 5/16" 1.50 2.25" 2.00" 3.50" 400 0.21
S0331-1012 3/8" 2.50 4.25" 2.50" 5.75" 600 0.38
S0331-1065 3/8" 1.50 2.50" 2.50" 4.25" 600 0.42
S0331-1315 1/2" 3.00 6.00" 3.00" 8.00" 1,100 0.94
S0331-1380 1/2" 1.50 3.25" 3.00" 5.25" 1,100 0.83

DETAILS

  • 316 Stainless Steel, Cast
[]
