Home --> Products --> Hardware --> Threaded Hardware --> Forged Eye Nut, Stainless Steel

[]
Additional Images:
Part View Part View 2 Part View 3
[]

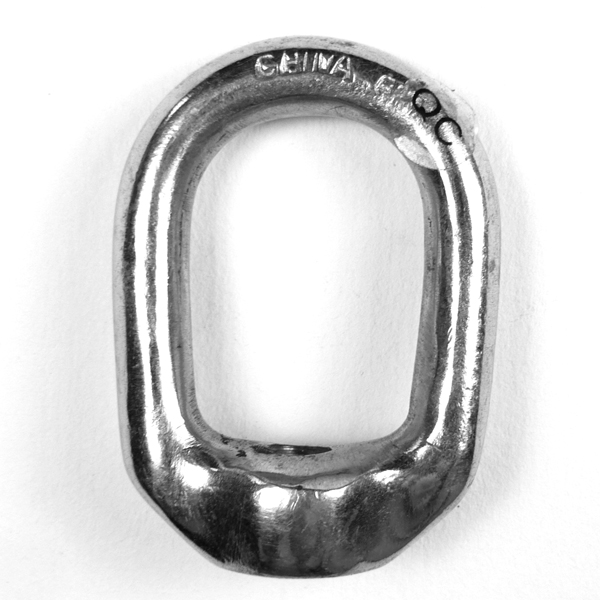

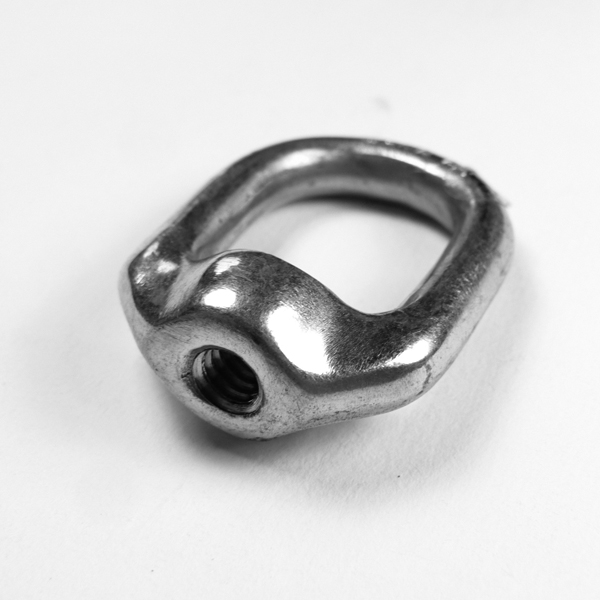

Forged Eye Nut

Model: S0322-000x

Heavy duty version of our Forged Eye Nuts. Lifting Forged Eye Nuts make coupling long bolts simple. Easy grasp nut is forged of 316 stainless.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Forged Eye Nut 1/4" $8.11
Forged Eye Nut 5/16" $10.64
Forged Eye Nut 3/8" $16.30
Forged Eye Nut 1/2" $24.60
Forged Eye Nut 5/8" $34.82
Forged Eye Nut 3/4" $56.48
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram Item Number Size A B C D WLL
S0322-0007 1/4 1/4 .75 .59 1.06 460
S0322-0008 5/16 5/16 .75 .59 1.06 780
S0322-0010 3/8 3/8 1.25 1.00 1.50 1160
S0322-0013 1/2 1/2 1.25 1.00 1.50 2150
S0322-0016 5/8 5/8 1.25 1.19 2.00 3440
S0322-0020 3/4 3/4 1.25 1.75 2.37 5140

DETAILS

  • 316 Stainless Steel, Forged
  • Manufactured by Suncor Stainless
[]
