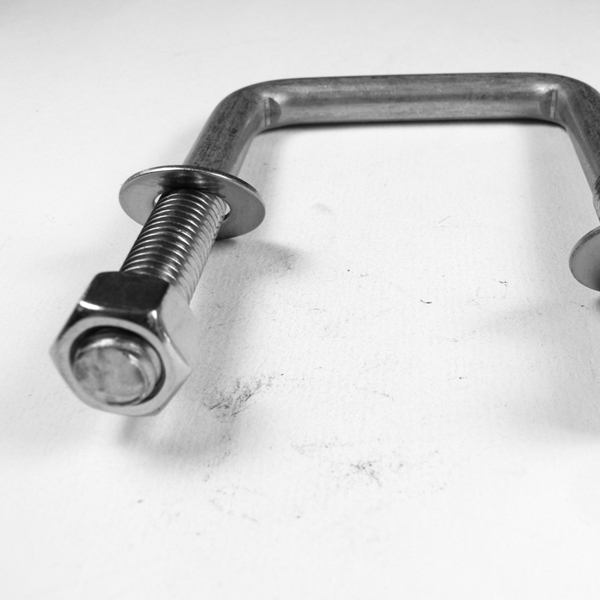

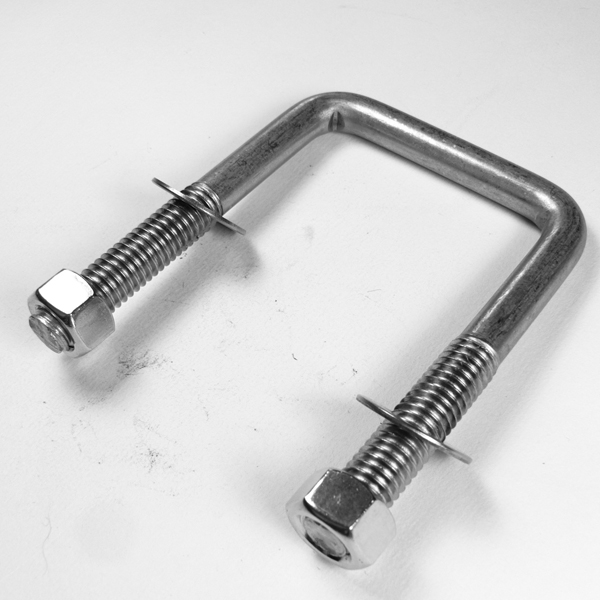

Square U-Bolt

Model: S0352-xxxx

These are the highest quality Long U-Bolts on the market. Formed from 304 Stainless, these are functional, useful and strong parts. Each set comes with four nuts.

See also: Standard U-Bolt, U-Bolt with Plate, and Long U-bolt.


		Stainless Steel Facts See our All About Stainless Guide to learn about the materials from which these parts are made.



		Hardware Terms See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.


		Suggested Tools These tools and materials are suggested for installation.

Learn More: Product Details | Accessories | Tools and Installation Materials

DIMENSIONS

Part #	A	Thread	B	C	D	WLL
S0356-102X3	3/8	3/8-16	2.00	1.50	3.40	1090 lb
S0356-102X5	3/8	3/8-16	2.00	3.00	5.40	1090 lb
S0356-102X7	3/8	3/8-16	2.00	3.75	7.37	1090 lb
S0356-104X3	3/8	3/8-16	4.00	1.50	3.37	1090 lb
S0356-104X5	3/8	3/8-16	4.00	3.00	5.37	1090 lb
S0356-104X7	3/8	3/8-16	4.00	3.75	7.37	1090 lb
S0356-106X5	3/8	3/8-16	6.00	3.00	5.30	1090 lb
S0356-106X7	3/8	3/8-16	6.00	3.75	7.37	1090 lb
S0356-106X9	3/8	3/8-16	6.00	5.63	9.37	1090 lb

DETAILS

304 Stainless Steel, Formed

Square U-Bolt 3/8" 2" x 3" - OUT OF STOCK thru May 08	$4.75
Square U-Bolt 3/8" 2" x 5"	$6.14
Square U-Bolt 3/8" 2" x 7" OUT OF STOCK thru May 08	$8.17
Square U-Bolt 3/8" 4" x 3"	$6.33
Square U-Bolt 3/8" 4" x 5"	$7.09
Square U-Bolt 3/8" 4" x 7"	$9.03
Square U-Bolt 3/8" 6" x 5"	$7.98
Square U-Bolt 3/8" 6" x 7"	$9.84
Square U-Bolt 3/8" 6" x 9"	$11.31
In Stock - Usually ships in 1-2 business days.	Add to Cart
