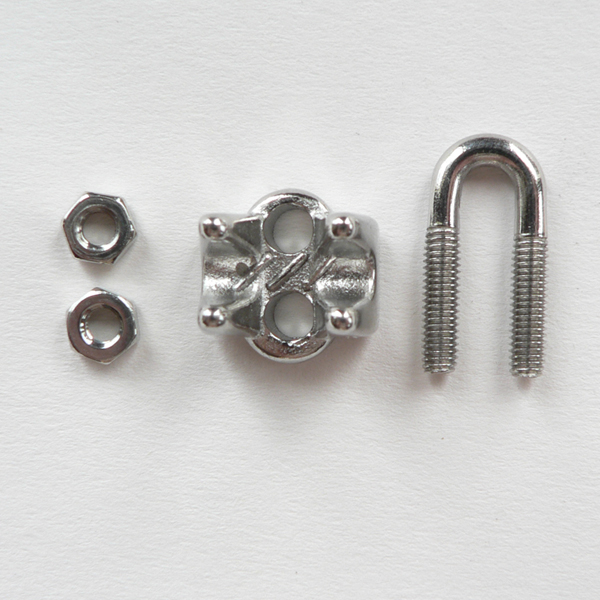

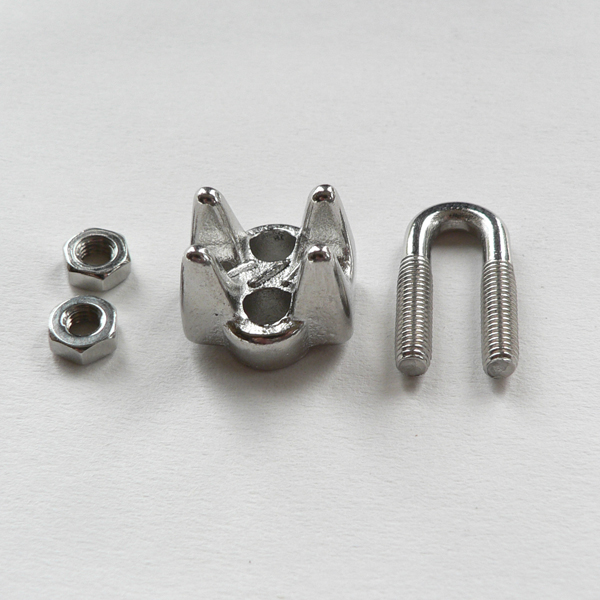

Part View Part View 2 Part View 3
[]

Wire Rope Clips

Model: S0122-FSxx

Wire Rope Clips are used in combination with wire rope and a thimble to make a secure wire loop. These are high quality clips, precision cast from 304 stainless.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Wire Rope Clips - 1/16" $.97
Wire Rope Clips - 1/8" $1.37
Wire Rope Clips - 5/32" $1.77
Wire Rope Clips - 3/16" $2.00
Wire Rope Clips - 1/4" $2.68
Wire Rope Clips - 5/16" $4.45
Wire Rope Clips - 3/8" $7.85
Wire Rope Clips - 1/2" $10.77
Wire Rope Clips - 9/16" $12.84
Wire Rope Clips - 5/8" $19.95
Wire Rope Clips - 3/4" $24.28
Wire Rope Clips - 7/8" $38.04
Wire Rope Clips - 1" $47.22
Wire Rope Clips - 1-1/4" $140.79
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
DIMENSIONS
part diagram ITEM A B C D E WT
S0122-FS02 1/16" 0.09" 0.40" 0.52" 0.55" 0.02
S0122-FS03 1/8" 0.12" 0.43" 0.55" 0.62" 0.02
S0122-FS04 5/32" 0.15" 0.56" 0.70" 0.73" 0.04
S0122-FS05 3/16" 0.19" 0.67" 0.78" 0.87" 0.06
S0122-FS07 1/4" 0.23" 0.75" 0.84" 1.11" 0.09
S0122-FS08 5/16" 0.31" 0.90" 1.06" 1.34" 0.17
S0122-FS10 3/8" 0.38" 1.00" 1.32" 1.74" 0.36
S0122-FS13 1/2" 0.47" 1.40" 1.48" 1.97" 0.52
S0122-FS14 9/16" 0.47" 1.50" 1.70" 2.05" 0.61
S0122-FS16 5/8" 0.54" 1.87" 1.83" 2.33" 0.89
S0122-FS20 3/4" 0.54" 2.00" 2.05" 2.42" 1.03
S0122-FS22 7/8" 0.61" 2.32" 2.41" 2.81" 1.57
S0122-FS25 1" 0.61" 2.41" 2.40" 2.97" 1.81
S0122-FS32 1-1/4" 0.85" 2.32" 3.16" 4.12" 4.45

DETAILS

  • 316 Stainless
[]
