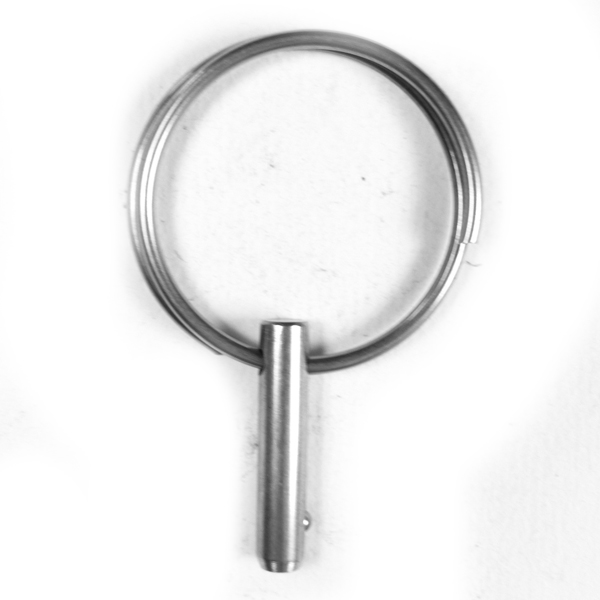

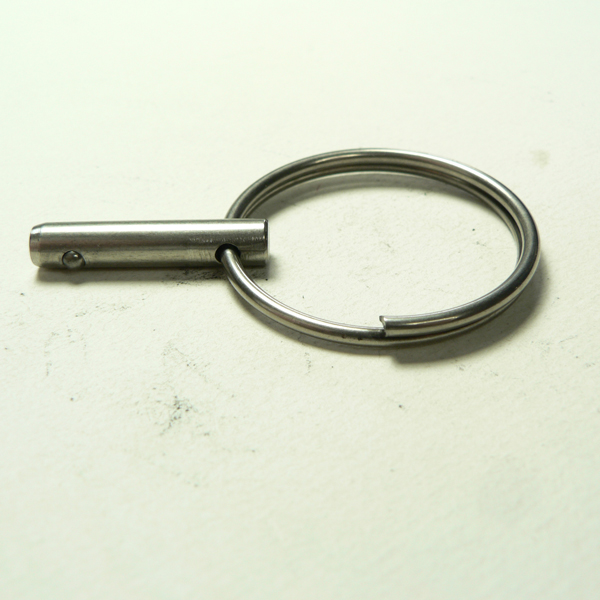

Quick Pin

Model: S0370-0xxx

This quick release pin has a spring-loaded ball bearing that serves as a tension-based cotter pin replacement. This pin holds fast under load, and is easily released by applying gentle latteral pressure (pushing in or pulling out).

This part is precision cast from 316 Stainless Steel.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Quick Pin - 3/16" x 1/2" Grip $2.76
Quick Pin - 3/16" x 1" Grip $2.91
Quick Pin - 3/16" x 1-1/2" Grip $3.08
Quick Pin - 3/16" x 2" Grip $3.23
Quick Pin - 1/4" x 1/2" Grip $3.08
Quick Pin - 1/4" x 1" Grip $3.55
Quick Pin - 1/4" x 1-1/2" Grip $3.88
Quick Pin - 1/4" x 2" Grip $4.20
Quick Pin - 5/16" x 1" Grip $3.88
Quick Pin - 5/16" x 1-1/2" Grip $4.20
Quick Pin - 5/16" x 2" Grip $4.69
Quick Pin - 3/8" x 1" Grip $4.20
Quick Pin - 3/8" x 1-1/2" Grip $5.02
Quick Pin - 3/8" x 2" Grip $5.66
Quick Pin - 3/8" x 2-1/2" Grip $6.63
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
DIMENSIONS
part diagram ITEM A B WLL WT
S0370-0515 3/16" 1/2" 2,575 0.01
S0370-0525 3/16" 1" 2,575 0.01
S0370-0540 3/16" 1-1/2" 2,575 0.02
S0370-0550 3/16" 2" 2,575 0.02
S0370-0715 1/4" 1/2" 4,600 0.02
S0370-0725 1/4" 1" 4,600 0.03
S0370-0740 1/4" 1-1/2" 4,600 0.03
S0370-0750 1/4" 2" 4,600 0.04
S0370-0825 5/16" 1" 7,200 0.04
S0370-0840 5/16" 1-1/2" 7,200 0.05
S0370-0850 5/16" 2" 7,200 0.05
S0370-1025 3/8" 1" 10,300 0.08
S0370-1040 3/8" 1-1/2" 10,300 0.10
S0370-1050 3/8" 2" 10,300 0.12
S0370-1065 3/8" 2-1/2" 10,300 0.14

DETAILS

  • 316 Stainless Steel
[]
