This quick lock pin pin has a spring-loaded ball bearing that is triggered by a cleaver push-button mechanism which serves as a tension-based cotter pin replacement. This pin holds fast under shear load, and is easily released by pushing the button.
This part is precision cast from 316 Stainless Steel.
Caution: all "quick" & "quicklock" pin working loads are caculated in double shear and not as pull out forge, which is unrated.
![[]](/images/1.gif){kind=small}
|
|

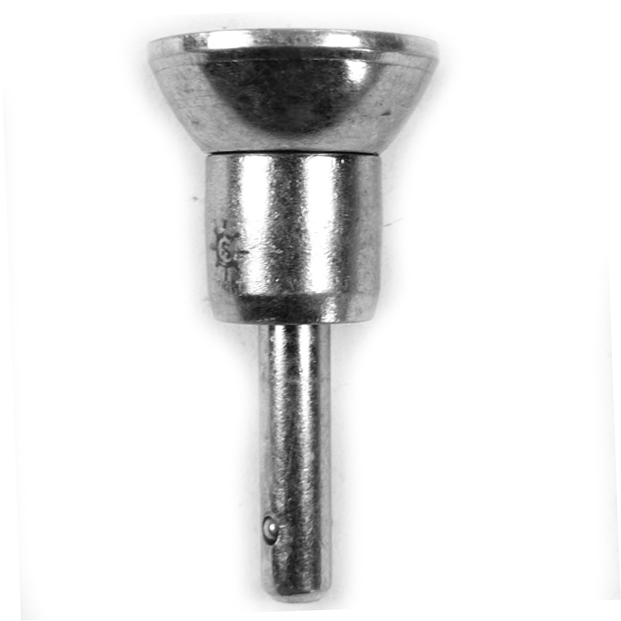

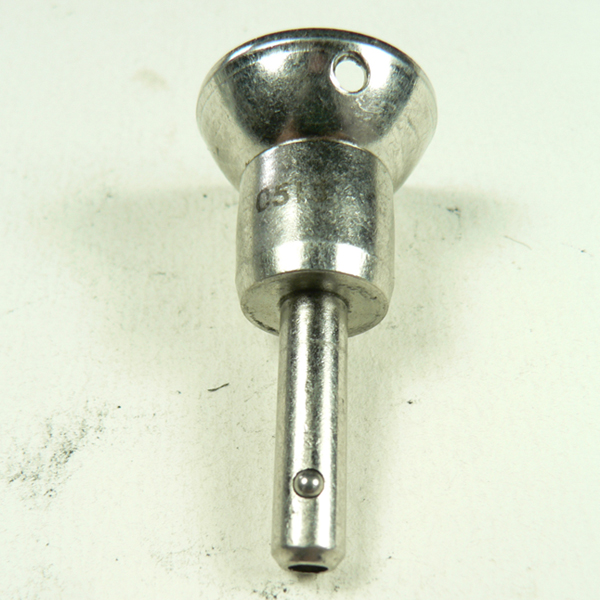

Quick Lock Pin
Model: S0375-0xxx
![[]](/images/gray_speck.gif){kind=small}
|
|
|
||||||||||||||||||||||||||||||
![[]](/images/grayScroll.gif){kind=small}
![[]](/images/grayScroll2.gif){kind=small}
|
ITEM | A | B | WLL | WT |
|---|---|---|---|---|---|
| S0375-0515 | 3/16" | 1/2" | 2,575 | 0.02 | |
| S0375-0520 | 3/16" | 3/4" | 2,575 | 0.03 | |
| S0375-0525 | 3/16" | 1" | 2,575 | 0.03 | |
| S0375-0540 | 3/16" | 1-1/2" | 2,575 | 0.04 | |
| S0375-0550 | 3/16" | 2" | 2,575 | 0.04 | |
| S0375-0715 | 1/4" | 1/2" | 4,600 | 0.04 | |
| S0375-0725 | 1/4" | 1" | 4,600 | 0.04 | |
| S0375-0740 | 1/4" | 1-1/2" | 4,600 | 0.05 | |
| S0375-0750 | 1/4" | 2" | 4,600 | 0.05 | |
| S0375-0820 | 5/16" | 3/4" | 7,200 | 0.05 | |
| S0375-0825 | 5/16" | 1" | 7,200 | 0.06 | |
| S0375-0840 | 5/16" | 1-1/2" | 7,200 | 0.08 | |
| S0375-0850 | 5/16" | 2" | 7,200 | 0.10 | |
| S0375-0865 | 5/16" | 2-1/2" | 7,200 | 0.12 | |
| S0375-1025 | 3/8" | 1" | 10,300 | 0.08 | |
| S0375-1040 | 3/8" | 1-1/2" | 10,300 | 0.10 | |
| S0375-1050 | 3/8" | 2" | 10,300 | 0.12 | |
| S0375-1065 | 3/8" | 2-1/2" | 10,300 | 0.14 |
DETAILS
- 316 Stainless Steel
