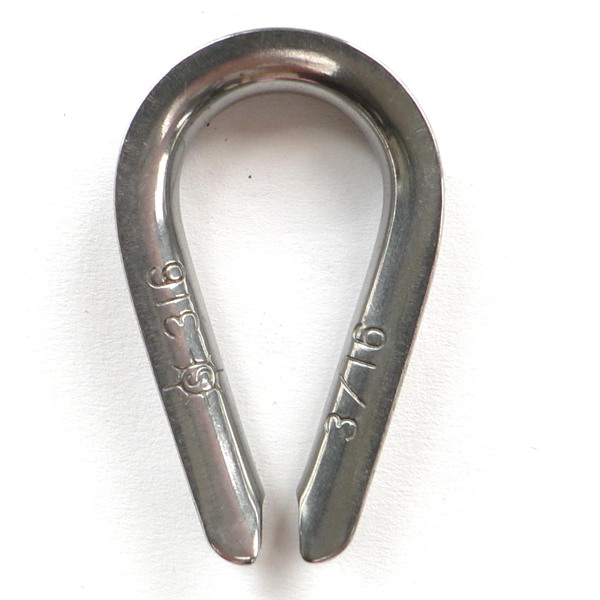

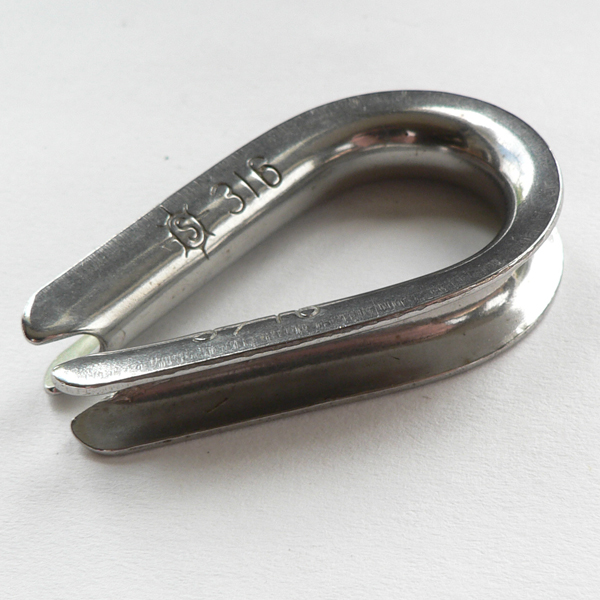

Part View Part View 2 Part View 3
[]

Fed. Spec. Heavy Duty Thimble

Model: S0122-FSxx

Fed. Spec. Heavy Duty Thimbles are used in combination with wire rope clips and wire rope to make a secure wire loop. These are high quality clips, precision cast from 316 stainless.

Note: Fed. Spec. Heavy Duty version. Dimensions and working load are to federal specification: FF-T-276b, type III. 316 Stainless steel
[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Fed. Spec. Heavy Duty Thimble - 3/16" $1.60
Fed. Spec. Heavy Duty Thimble - 1/4" $2.22
Fed. Spec. Heavy Duty Thimble - 5/16" $3.53
Fed. Spec. Heavy Duty Thimble - 3/8" $5.81
Fed. Spec. Heavy Duty Thimble - 7/16" $7.32
Fed. Spec. Heavy Duty Thimble - 1/2" $10.64
Fed. Spec. Heavy Duty Thimble - 9/16" $12.60
Fed. Spec. Heavy Duty Thimble - 5/8" $14.63
Fed. Spec. Heavy Duty Thimble - 3/4" $27.55
Fed. Spec. Heavy Duty Thimble - 7/8" $32.11
Fed. Spec. Heavy Duty Thimble - 1" $44.04
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
DIMENSIONS
part diagram ITEM SIZE A B C D WT
S0123-FS05 3/16" 0.23" 0.71" 1.35" 0.05" 0.03
S0123-FS07 1/4" 0.28" 0.90" 1.60" 0.07" 0.08
S0123-FS08 5/16" 0.35" 1.08" 1.85" 0.07" 0.10
S0123-FS10 3/8" 0.40" 1.12" 2.00" 0.11" 0.23
S0123-FS13 1/2" 0.55" 1.52" 2.62" 0.15" 0.51
S0123-FS14 9/16" 0.62" 1.48" 2.94" 0.15" 0.54
S0123-FS16 5/8" 0.65" 1.78" 3.00" 0.15" 0.71
S0123-FS20 3/4" 0.85" 2.02" 3.83" 0.22" 1.61
S0123-FS22 7/8" 0.95" 2.30" 4.08" 0.22" 1.87
S0123-FS25 1" 1.12" 2.56" 4.80" 0.22" 2.56
S0123-FS28 1-1/8" 1.30" 3.00" 5.87" 0.22" 4.00
S0123-FS32 1-1/4" 1.38" 3.00" 6.25" 0.22" 4.24

DETAILS

  • 316 STAINLESS STEEL
[]
