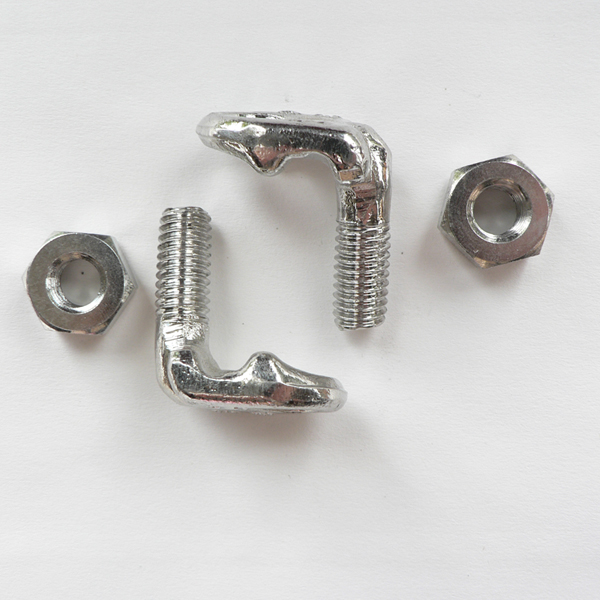

Chair Clips

Model: S0122-F0xx

Chair Clips are used in combination with wire rope and a thimble to make a secure wire loop. These are high quality clips, precision cast from 316-NM stainless.

Note: Note: i/a/w federal specification ff-c-450d, type 3, class 1. (Except 316 stainless, drop forged)
[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Forged Chair Clips - 1/4" $16.19
Forged Chair Clips - 5/16" $23.66
Forged Chair Clips - 3/8" $31.41
Forged Chair Clips - 7/16" + 1/2" $51.87
Forged Chair Clips - 9/16" + 5/8" $69.65
Forged Chair Clips - 3/4" $116.00
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
DIMENSIONS
part diagram ITEM A B C D E WT
S0122-C007 1/4" 0.36" 1.75" 0.93" 1.44" 0.22
S0122-C008 5/16" 0.38" 2.00" 1.07" 1.68" 0.31
S0122-C010 3/8" 0.43" 2.38" 1.10" 1.87" 0.46
S0122-C013 1/2" 0.50" 2.70" 1.26" 2.13" 0.61
S0122-C016 5/8" 0.62" 3.30" 1.50" 2.53" 1.16
S0122-C020 3/4" 0.75" 3.70" 1.75" 3.12" 1.88

DETAILS

  • 316-NM STAINLESS STEEL
[]
