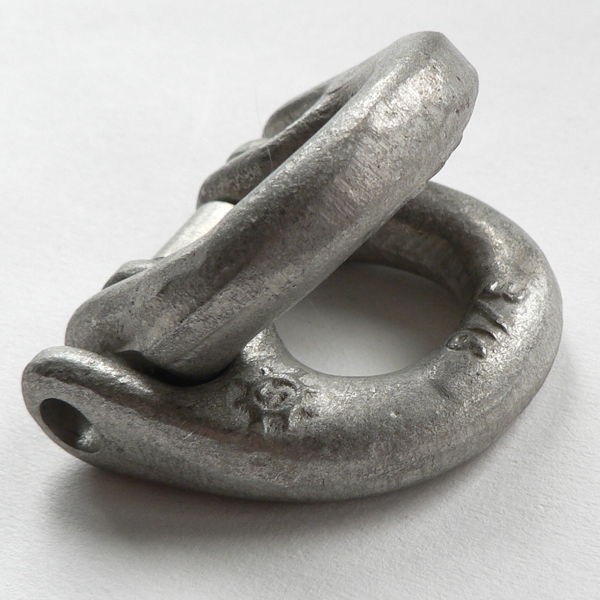

Hammerlock Link

Model: S0655-00xx

The name Hammerlock Link comes for teh action of pounding the pin in place. These are really strong clips and shoud be used as a repacement for connecting links when high-strength is desireable. The WLL is based on a tension load, and not shock load.

Forged 316nm Stainless Steel. Replacement pin set - includes pin, bushing and roll pin.
[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Forged Hammerlock - 3/16" $19.76
Hammerlock Pin & Bushset - 3/16" $9.50
Forged Hammerlock - 1/4" $26.90
Hammerlock Pin & Bushset - 1/4" $11.40
Forged Hammerlock - 5/16" $28.60
Hammerlock Pin & Bushset - 5/16" $13.30
Forged Hammerlock - 3/8" $54.94
Hammerlock Pin & Bushset - 3/8" $15.20
Forged Hammerlock - 1/2" $93.54
Hammerlock Pin & Bushset - 1/2" $17.10
Forged Hammerlock - 5/8" $166.48
Hammerlock Pin & Bushset - 5/8" $28.50
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
DIMENSIONS
part diagram ITEM SIZE A B C D WLL WT
S0655-0005 3/16" 0.29" 1.56" 0.59" 0.35” 1,100 0.12
S0655-0007 1/4" 0.32" 1.95" 0.75" 0.48" 2,200 0.21
S0655-0008 5/16" 0.38" 2.25" 0.80" 0.45" 2,700 0.31
S0655-0010 3/8" 0.50" 2.95" 1.24" 0.79" 4,400 0.65
S0655-0013 1/2" 0.62" 3.62" 1.37" 0.80" 7,300 1.40
S0655-0016 5/8" 0.80" 4.25" 1.86" 1.20" 11,000 3.00

DETAILS

  • 316-NM STAINLESS STEEL
[]
