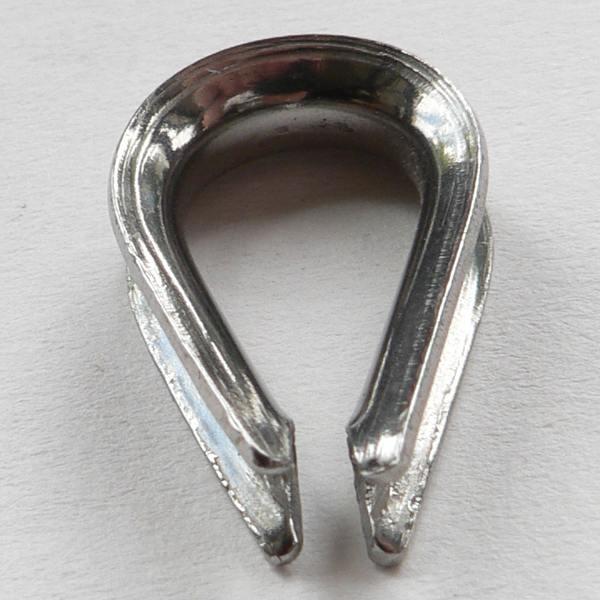

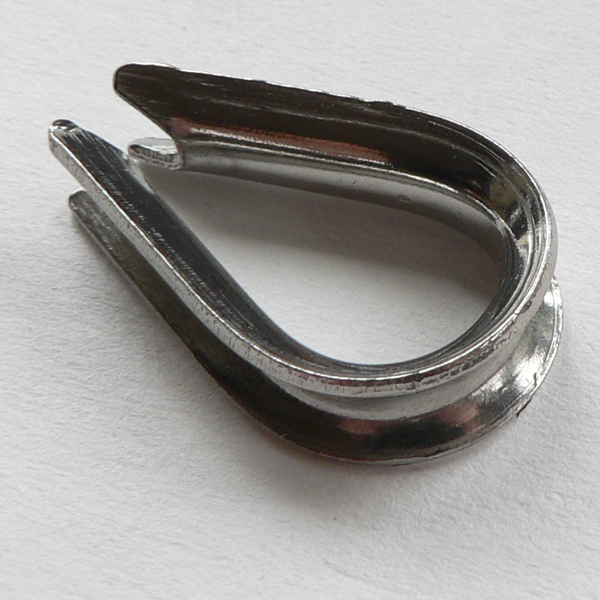

Part View Part View 2 Part View 3
[]

Commercial Thimble

Model: S0123-00xx

Commercial Thimble are used in combination with wire rope clips, wire rope to make a secure wire loop. These are high quality clips, precision cast from 304 stainless.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Commercial Thimble - 1/16" $.27
Commercial Thimble - 1/16" - 5/64" $.32
Commercial Thimble - 3/32" - 1/8" $.36
Commercial Thimble - 5/32" $.42
Commercial Thimble - 3/16" $.68
Commercial Thimble - 1/4" $.78
Commercial Thimble - 5/16" $.84
Commercial Thimble - 3/8" $1.67
Commercial Thimble - 1/2" $2.45
Commercial Thimble - 9/16" $2.72
Commercial Thimble - 5/8" $5.85
Commercial Thimble - 3/4" $5.85
Commercial Thimble - 7/8" $7.94
Commercial Thimble - 1" $10.26
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
DIMENSIONS
part diagram ITEM SIZE A B C D WT
S0123-0001 1/16" 0.10" 0.28" 0.48" 0.03" 0.30/100
S0123-0002 1/16"-5/64" 0.09" 0.31" 0.62" 0.03" 0.40/100
S0123-0003 3/32"-1/8" 0.12" 0.38" 0.72" 0.03" 0.50/100
S0123-0004 5/32" 0.14" 0.43" 0.73" 0.04" 0.74/100
S0123-0005 3/16" 0.20" 0.55" 0.78" 0.04" 0.01
S0123-0007 1/4" 0.25" 0.57" 0.95" 0.05" 0.02
S0123-0008 5/16" 0.34" 0.78" 1.40" 0.06" 0.04
S0123-0010 3/8" 0.42" 0.94" 1.70" 0.06" 0.06
S0123-0013 1/2" 0.54" 1.20" 1.85" 0.06" 0.08
S0123-0014 9/16" 0.60" 1.36" 2.05" 0.06" 0.10
S0123-0016 5/8" 0.68" 1.45" 2.37" 0.07" 0.17
S0123-0018 3/4" 0.76" 1.60" 2.63" 0.08" 0.21
S0123-0022 7/8" 0.95" 1.90" 3.10" 0.09" 0.39
S0123-0025 1" 1.05" 2.08" 3.36" 0.09" 0.49

DETAILS

  • 304 Stainless
[]
