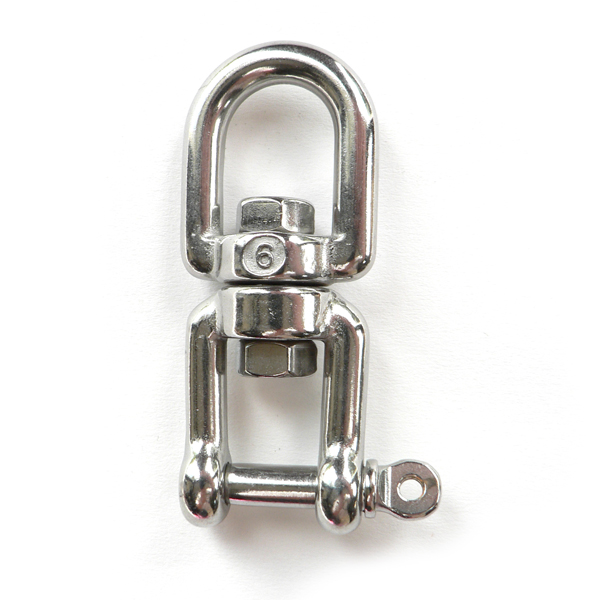

Eye & Jaw Swivel

Model: S0128-00xx

Eye and Eye Swivel for rigging, and other applications where twist in cable, rope or cord is undesireable. Nice, solid part. 316 stainless steel.

Note: no snag version has shackle pin thatsits flush with body of swivel.
[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Eye & Jaw Swivel - 1/4" $7.05
Eye & Jaw Swivel - 1/4" -- No Snag Version $8.85
Eye & Jaw Swivel - 5/16" $11.04
Eye & Jaw Swivel - 3/8" $21.95
Eye & Jaw Swivel - 1/2" $29.47
Eye & Jaw Swivel - 5/8" $66.90
Eye & Jaw Swivel - 3/4" $96.43
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
DIMENSIONS
part diagram ITEM A B C D WLL WT
S0155-0006 1/4" 0.50" 0.43" 2.62" 600 0.14
S0155-0008 5/16" 0.62" 0.62" 3.62" 1,100 0.33
S0155-0010 3/8" 0.75" 0.87" 4.62" 1,540 0.63
S0155-0013 1/2" 1.00" 1.12" 6.00" 2,640 1.40
S0155-0016 5/8" 1.25" 1.37" 7.37" 4,750 2.36
S0155-0020 3/4" 1.50" 1.62" 8.62" 7,000 3.93
S0155-NS06 (no snag) 1/4" 0.50" 0.43" 2.62" 600 0.14

DETAILS

  • 316 STAINLESS STEEL
[]
