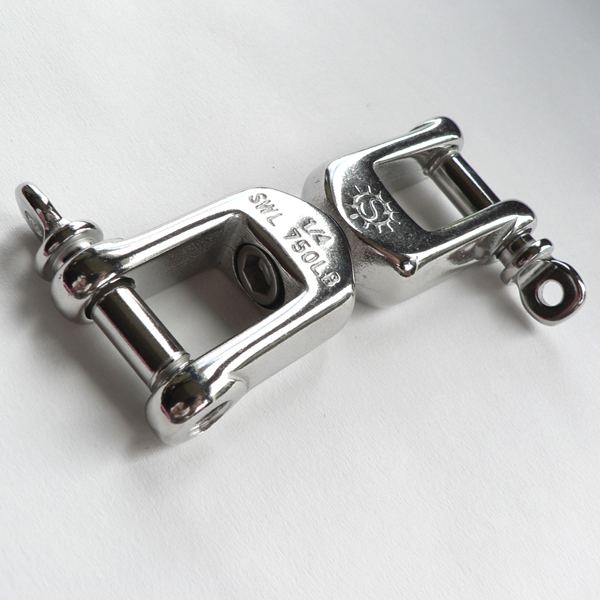

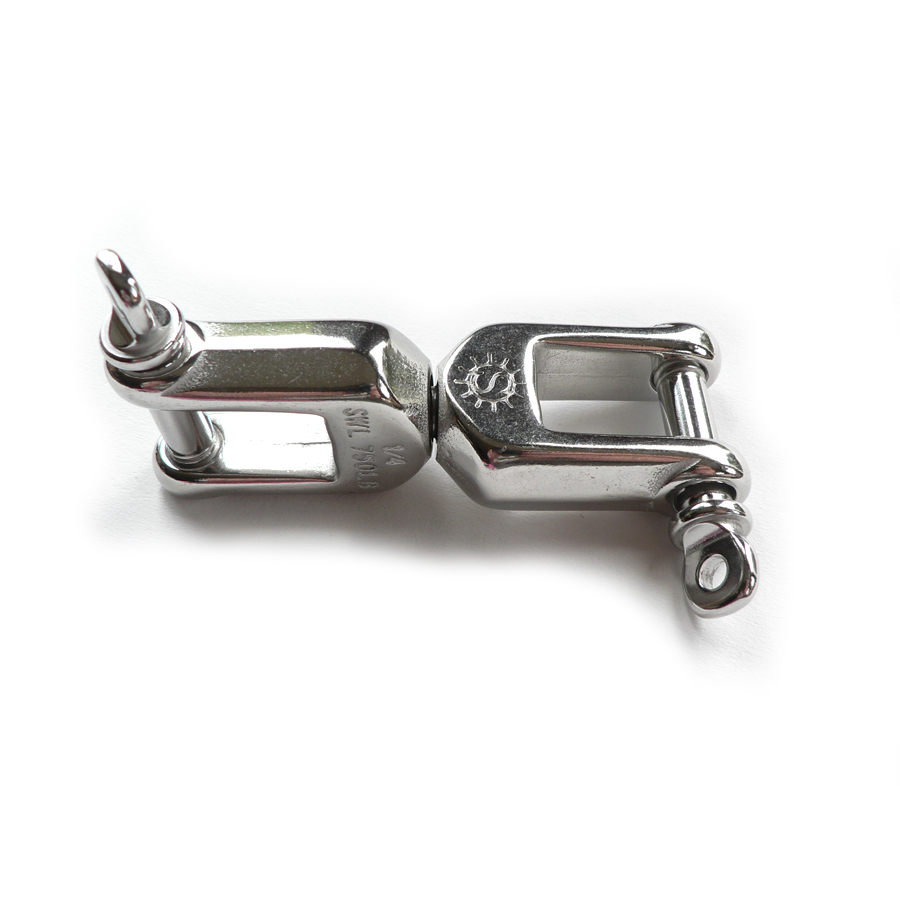

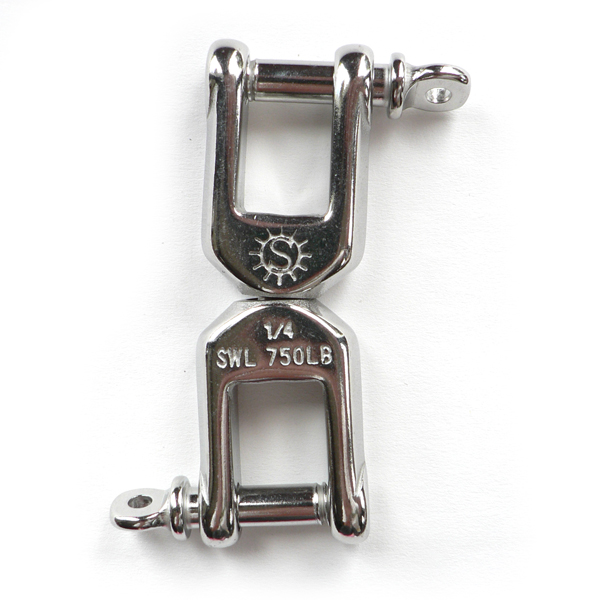

Part View Part View 2 Part View 3
[]

Heavy Duty Jaw & Jaw Swivel

Model: S0156-HDxx

Heavy Duty Eye and Jaw Swivel for rigging, and other applications where twist in cable, rope or cord is undesireable. Nice, solid part. 316 stainless steel.

Note: marked with size and working load. Bulk orders on swivels with "no snag" shackle pin may be placed on special order.
[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Heavy Duty Jaw & Jaw Swivel - 1/4" $16.99
Heavy Duty Jaw & Jaw Swivel - 5/16" $21.66
Heavy Duty Jaw & Jaw Swivel - 3/8" $32.09
Heavy Duty Jaw & Jaw Swivel - 1/2" $54.72
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
DIMENSIONS
part diagram ITEM A B C D WLL WT
S0156-HD07 1/4" 0.50" 0.68" 3.25" 750 0.27
S0156-HD08 5/16" 0.62" 0.87" 3.62" 1,400 0.52
S0156-HD10 3/8" 0.75" 1.00" 4.62" 2,000 0.88
S0156-HD13 1/2" 1.00" 1.37" 6.00" 3,300 2.00

DETAILS

  • 316 STAINLESS STEEL
[]
