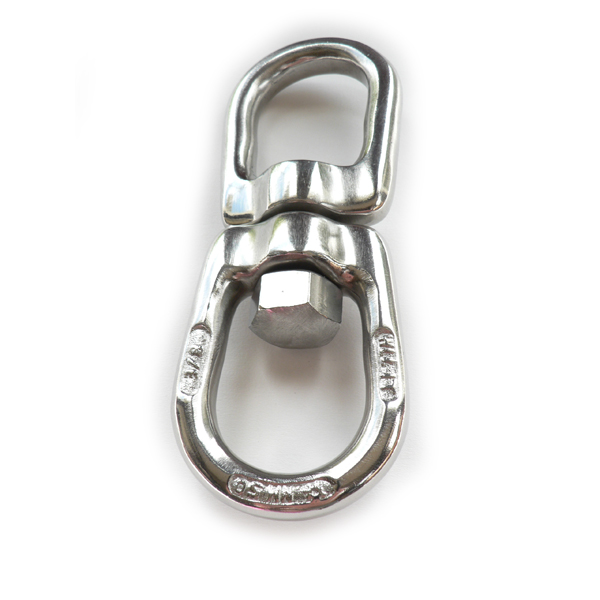

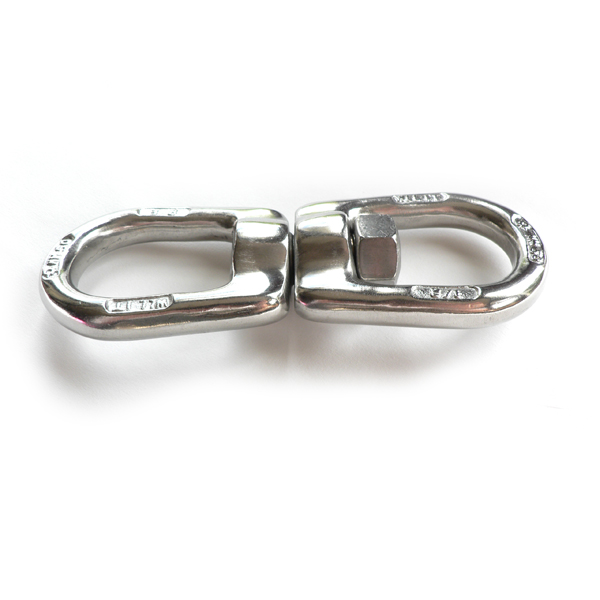

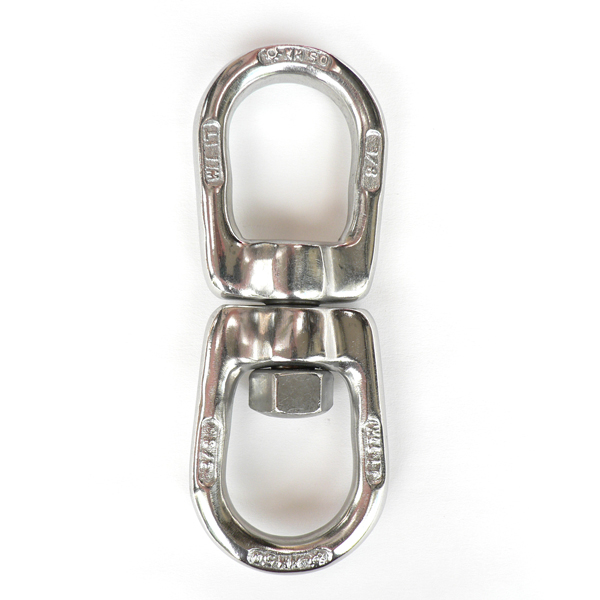

Part View Part View 2 Part View 3
[]

Eye & Eye Swivel

Model: S0128-00xx

Eye and Eye Swivel for rigging, and other applications where twist in cable, rope or cord is undesireable. Nice, solid part.

316 stainless steel
[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Eye & Eye Swivel - 5/32" $3.93
Eye & Eye Swivel - 3/16" $4.52
Eye & Eye Swivel - 1/4" $6.33
Eye & Eye Swivel - 5/16" $10.20
Eye & Eye Swivel - 3/8" $13.07
Eye & Eye Swivel - 1/2" $27.55
Eye & Eye Swivel - 5/8" $42.75
Eye & Eye Swivel - 3/4" $87.12
Eye & Eye Swivel - 7/8" $111.59
Eye & Eye Swivel - 1" $167.92
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
DIMENSIONS
part diagram ITEM A B C D WLL WT
S0128-0004 5/32" 0.43" 0.50" 2.00" 150 0.12
S0128-0005 3/16" 0.50" 0.50" 2.31" 300 0.12
S0128-0006 1/4" 0.56" 0.56" 2.56" 600 0.12
S0128-0008 5/16" 0.75" 0.75" 3.62" 1,100 0.29
S0128-0010 3/8" 0.87" 1.00" 4.62" 1,540 0.55
S0128-0013 1/2" 1.25" 1.31" 6.00" 2,640 1.25
S0128-0016 5/8" 1.50" 1.62" 7.37" 4,750 2.10
S0128-0020 3/4" 1.62" 2.00" 8.50" 7,000 3.40
S0128-0022 7/8" 1.87" 2.00" 9.25" 8,000 5.02
S0128-0025 1" 2.50" 2.56" 11.00" 10,000 8.73

DETAILS

  • 316 STAINLESS STEEL
[]
