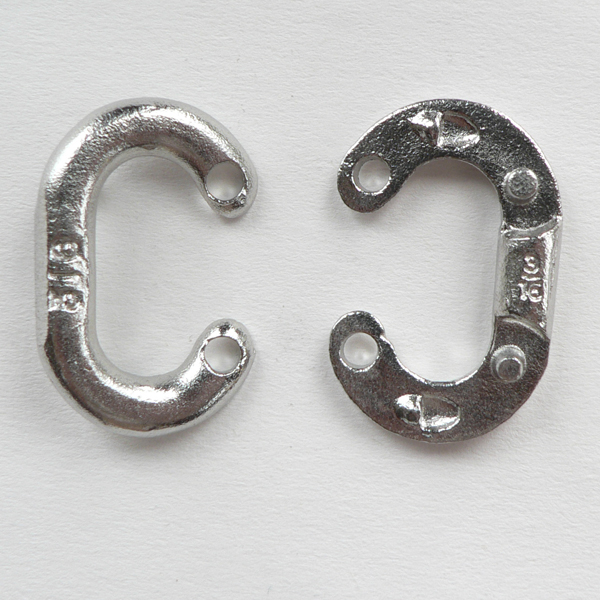

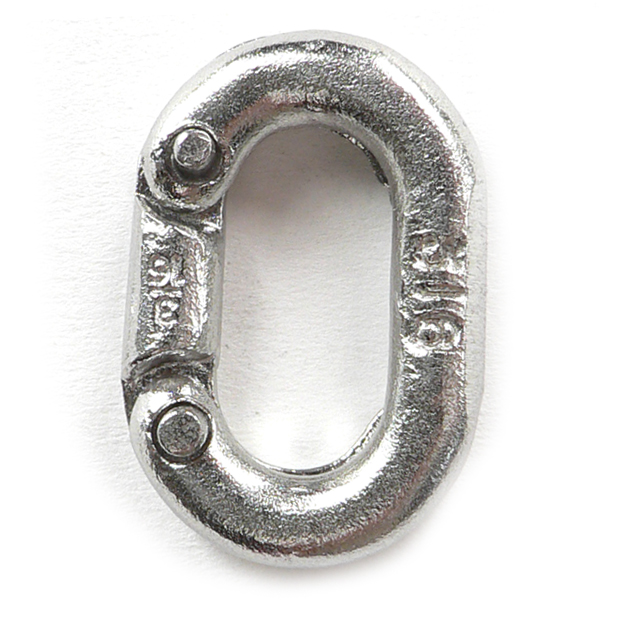

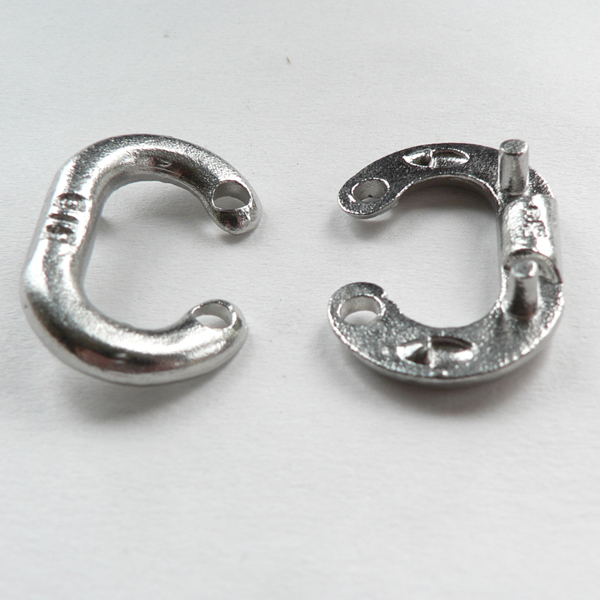

Forged Connecting Link

Model: S0660-00xx

The two halves on the connecting link snap together for permanent closure. Snap on the ends of two lengths of chain (or a loop) for secure connection. Please use common sense and do not use without the riveting pins securely in place. These cast connecting links are one of strongest soluton. For another option with an emphasis on strength, see hammerlocks. Our more economical (and reasonably strong) solution see our cast connecting links.

This part is forged from 316-NM Stainless Steel.

Size and wll are permanently forged into each part during production. WLL are 25% of breaking load.


		Stainless Steel Facts See our All About Stainless Guide to learn about the materials from which these parts are made.



		Hardware Terms See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.


		Suggested Tools These tools and materials are suggested for installation.

Learn More: Product Details | Accessories | Tools and Installation Materials

DIMENSIONS

ITEM	A	B	C	D	WLL	WT
S0660-0007	1/4"	0.42	0.87"	1.50"	1,400	0.07
S0660-0008	5/16"	0.50	1.00"	1.75"	2,000	0.12
S0660-0010	3/8"	0.57	1.12"	2.12"	2,800	0.18

DETAILS

316-NM Stainless Steel

Forged Connecting Link - 1/4"	$10.13
Forged Connecting Link - 5/16"	$12.83
Forged Connecting Link - 3/8"	$17.02
In Stock - Usually ships in 1-2 business days.	Add to Cart
