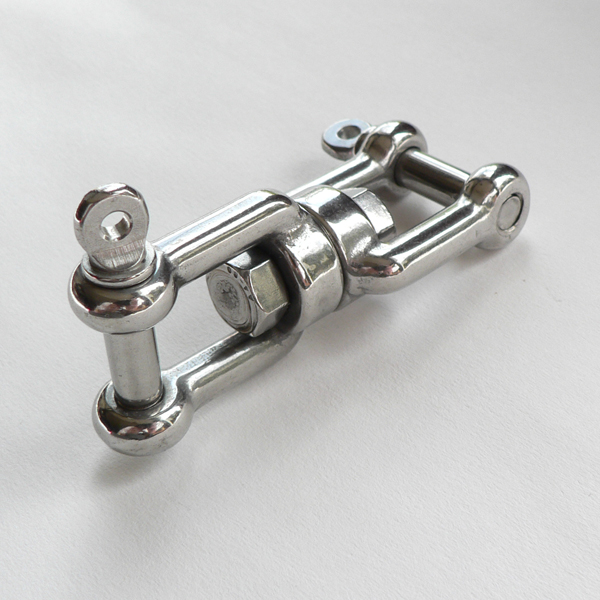

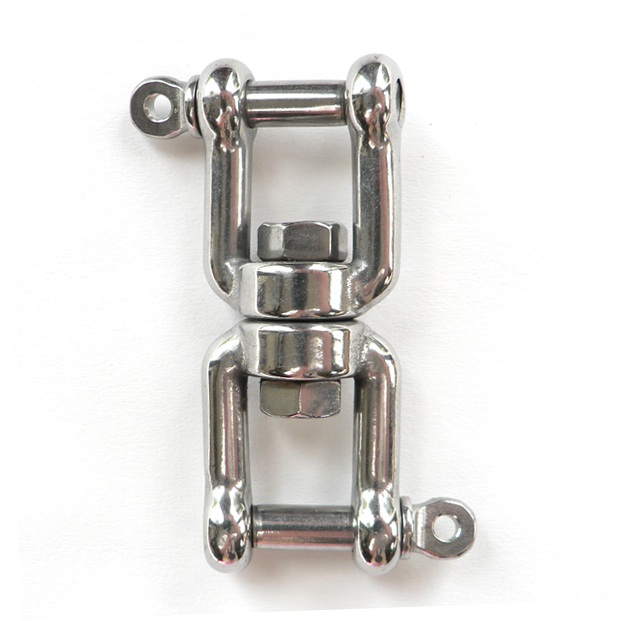

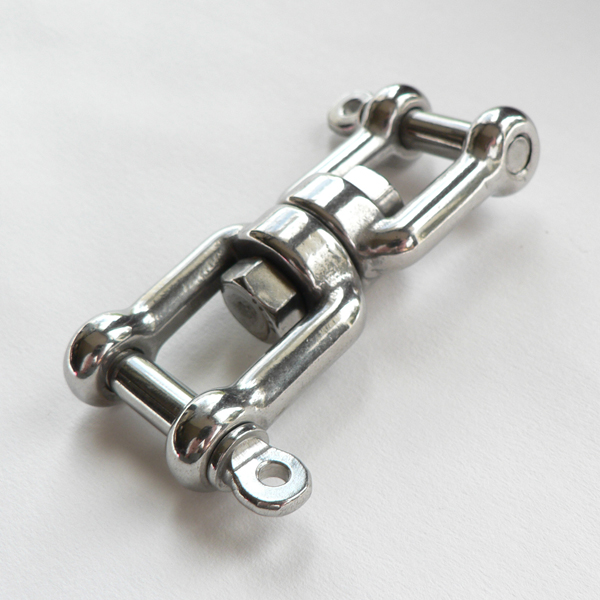

Jaw & Jaw Swivel

Model: S0156-00xx

Eye and Eye Swivel for rigging, and other applications where twist in cable, rope or cord is undesireable. Nice, solid part. 316 stainless steel.

Commercial type. No snag shackle pin available for some sizes at additional cost. 316 Stainless steel
[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Jaw & Jaw Swivel - 1/4" $9.12
Jaw & Jaw Swivel - 5/16" $16.80
Jaw & Jaw Swivel - 3/8" $22.82
Jaw & Jaw Swivel - 1/2" $40.57
Jaw & Jaw Swivel - 5/8" $75.16
Jaw & Jaw Swivel - 3/4" $123.96
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
DIMENSIONS
<
part diagram ITEM A B C D WLL WT
S0156-0006 1/4" 0.50" 0.43" 2.50" 600 0.15
S0156-0008 5/16" 0.62" 0.62" 3.50" 1,100 0.38
S0156-0010 3/8" 0.75" 0.87" 4.44" 1,540 0.74
S0156-0013 1/2" 1.00" 1.12" 5.88" 2,640 1.54
S0156-0016 5/8" 1.25" 1.37" 7.31" 4,750 2.63
S0156-0020 3/4" 1.50" 1.62" 8.63" 7,100 4.34

DETAILS

  • 316 STAINLESS STEEL
[]
