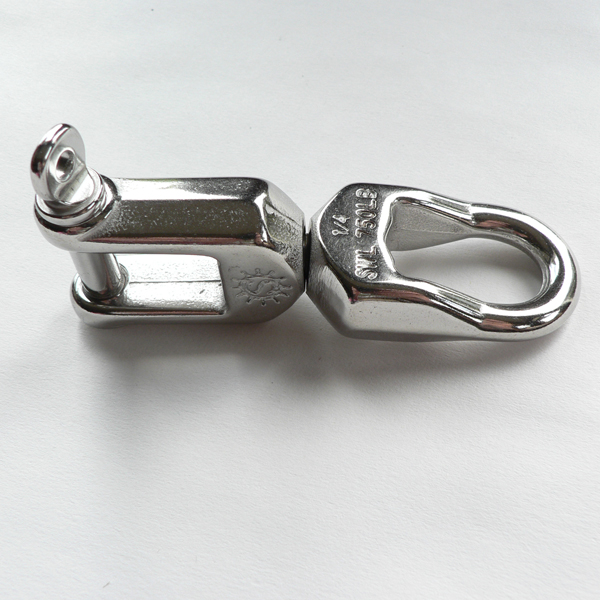

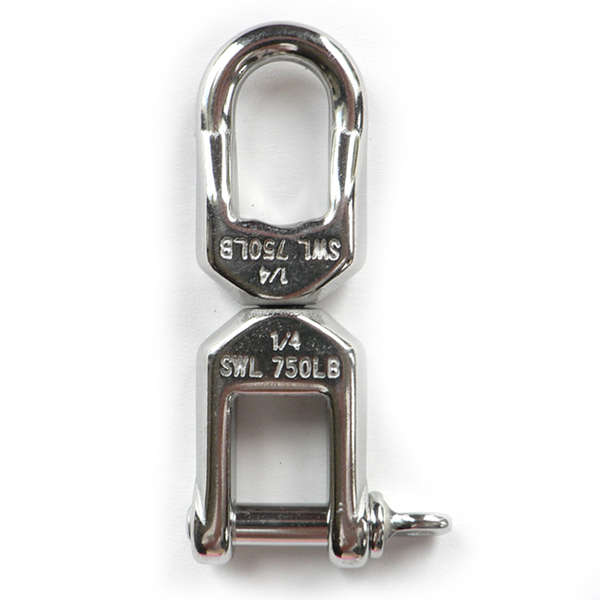

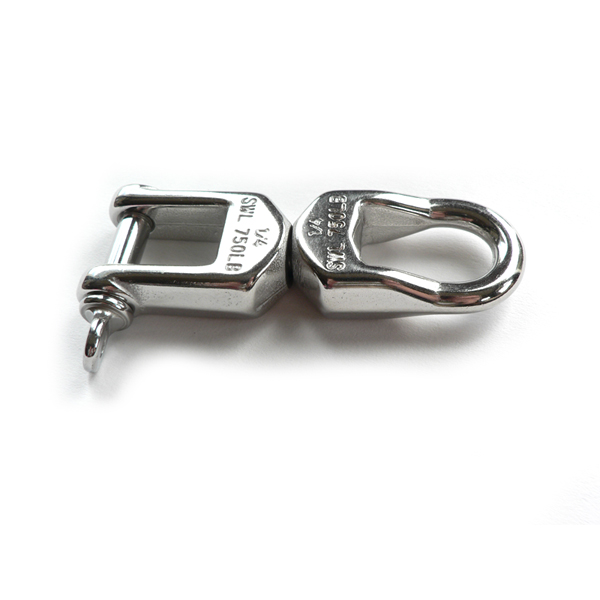

Part View Part View 2 Part View 3
[]

Heavy Duty Eye & Jaw Swivel

Model: S0155-HDxx

Heavy Duty Eye and Jaw Swivel for rigging, and other applications where twist in cable, rope or cord is undesireable. Nice, solid part. 316 stainless steel.

Note: marked with size and working load.
[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Heavy Duty Eye & Jaw Swivel - 1/4" $11.97
Heavy Duty Eye & Jaw Swivel - 5/16" $17.44
Heavy Duty Eye & Jaw Swivel - 3/8" $23.48
Heavy Duty Eye & Jaw Swivel - 1/2" $51.64
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
DIMENSIONS
part diagram ITEM A B C D WLL WT
S0155-HD07 1/4" 0.50" 0.68" 3.25" 750 0.24
S0155-HD08 5/16" 0.62" 0.87" 4.12" 1,400 0.48
S0155-HD10 3/8" 0.75" 1.00" 5.00" 2,000 0.82
S0155-HD13 1/2" 1.00" 1.37" 6.50" 3,300 1.88

DETAILS

  • 316 STAINLESS STEEL
[]
