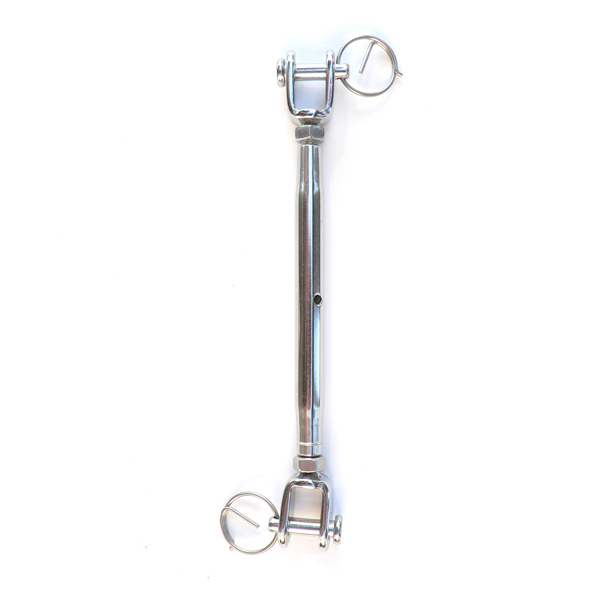

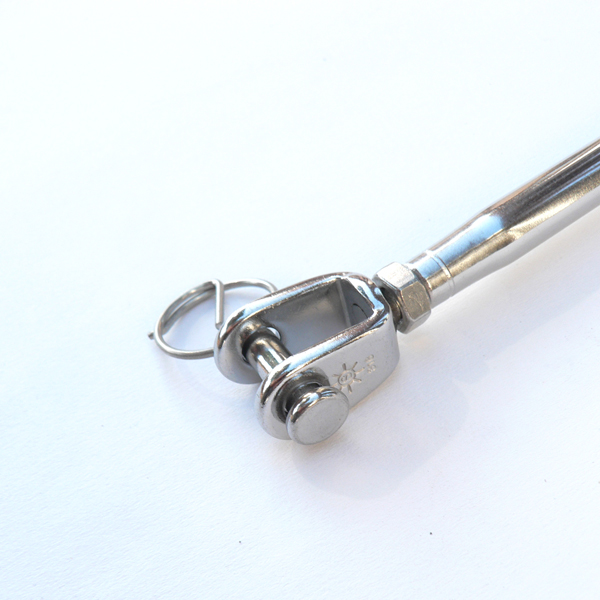

Part View Part View 2 Part View 3
[]

Stamped Turnbuckle Jaw & Jaw

Model: S0101-00xx

This closed type turnbuckle is ideal for architectural applications. Body is machined from tubing. Jaws are formed and welded. Threads are standard UNC. 316 Stainless steel

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Turnbuckle Jaw & Jaw - 3/16" $18.13
Turnbuckle Jaw & Jaw - 1/4" $21.60
Turnbuckle Jaw & Jaw - 5/16" $31.46
Turnbuckle Jaw & Jaw - 3/8" $37.73
Turnbuckle Jaw & Jaw - 1/2" $56.54
Turnbuckle Jaw & Jaw - 5/8" $86.66
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C D E WLL
S0101-0005 3/16" 3.13" 4.75" 0.18" 0.30" 300
S0101-0007 1/4" 3.50" 5.50" 0.22" 0.38" 440
S0101-0008 5/16" 4.31" 6.25" 0.30" 0.40" 800
S0101-0010 3/8" 4.87" 7.75" 0.37" 0.46" 1,200
S0101-0013 1/2" 5.80" 9.50" 0.46" 0.59" 2,200
S0101-0016 5/8" 7.50" 12.00" 0.60" 0.65" 2,800

DETAILS

  • 316 Stainless Steel, Stamped
[]
