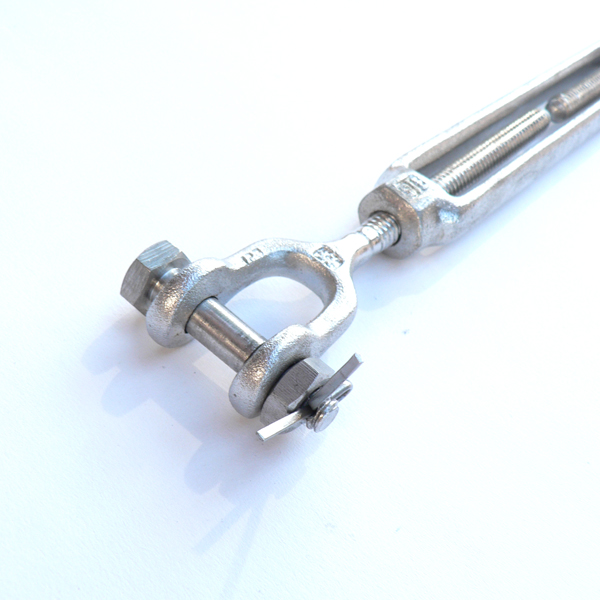

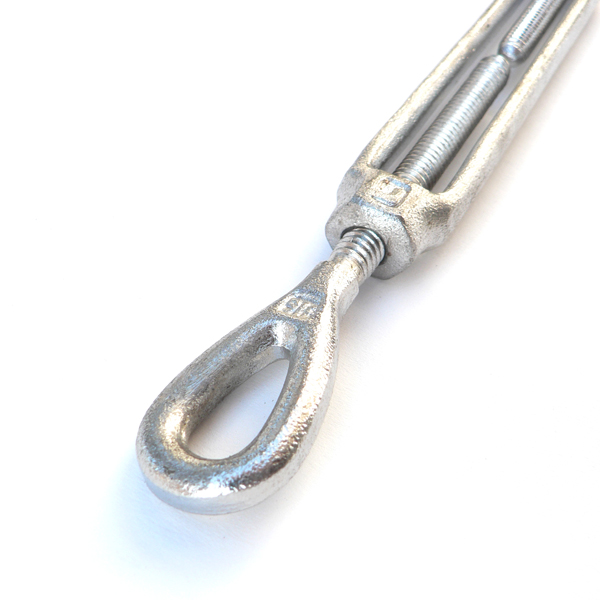

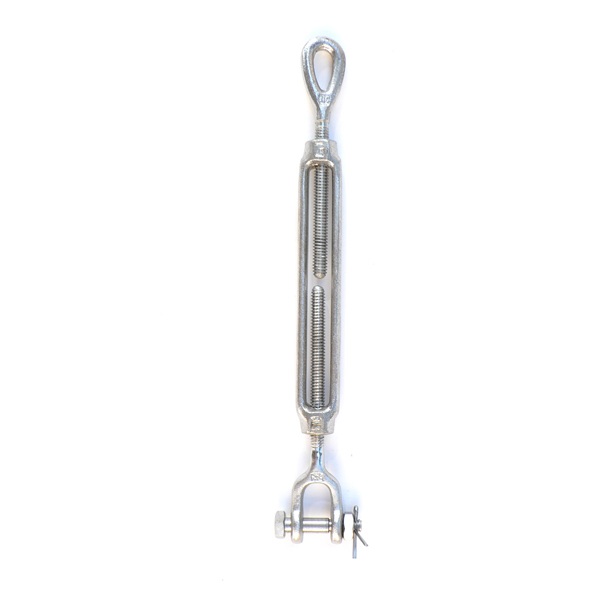

Part View Part View 2 Part View 3
[]

Forged Turnbuckle Jaw & Eye

Model: S0109-JExx

High qualitym very strong turnbuckle. Meets WLL and dimensions of ASTM specification F1145-92 type 1, class H.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Turnbuckle - Jaw & Eye - 1/4" x 4" $37.79
Turnbuckle - Jaw & Eye - 5/16" x 4-1/2" $52.93
Turnbuckle - Jaw & Eye - 3/8" x 6" $78.07
Turnbuckle - Jaw & Eye - 1/2" x 6" $110.37
Turnbuckle - Jaw & Eye - 5/8" x 6" $158.54
Turnbuckle - Jaw & Eye - 3/4" x 6" $185.74
Turnbuckle - Jaw & Eye - 1" x 6" $293.68
Turnbuckle - Jaw & Eye - 1" x 12" $345.93
Turnbuckle - Jaw & Eye - 1-1/4" x 12" $616.39
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C D E WLL WT
S0109-JE07 1/4" 4.00" 7.88" 0.33" 0.44" 500 0.35
S0109-JE08 5/16" 4.50" 9.25" 0.41" 0.50" 800 0.60
S0109-JE10 3/8" 6.00" 11.00" 0.50" 0.56" 1,200 0.80
S0109-JE13 1/2" 6.00" 12.50" 0.75" 0.63" 2,200 1.55
S0109-JE16 5/8" 6.00" 14.00" 0.87" 0.75" 3,500 2.69
S0109-JE20 3/4" 6.00" 15.63" 1.00" 1.00" 5,200 4.00
S0109-JE25 1" 6.00" 19.00" 1.38" 1.25" 8,000 9.66
S0109-JE25-1 1" 12.00" 25.00" 1.38" 1.25" 8,000 11.79
S0109-JE32-1 1-1/4" 12.00" 27.50" 1.71" 1.88" 12,500 19.96

DETAILS

  • 316-NM Stainless Steel, Forged
  • Manufactured by Suncor Stainless
[]
