Cast Turnbuckle Eye & Eye

Model: S0154-HExx

Economical, yet high quality turnbuckle with precision cast body. Eyes are formed and welded. Threads are standard "UNC".

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Turnbuckle Eye & Eye - 3/16" $13.16
Turnbuckle Eye & Eye - 1/4" $14.97
Turnbuckle Eye & Eye - 5/16" $20.69
Turnbuckle Eye & Eye - 3/8" $29.13
Turnbuckle Eye & Eye - 1/2" $46.09
Turnbuckle Eye & Eye - 5/8" $63.75
Turnbuckle Eye & Eye - 3/4" $98.57
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS

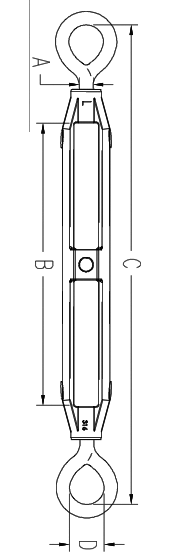

part diagram ITEM A B C D WLL WT
S0154-EE05 3/16" 2.50" 5.19" 0.38" 300 0.08
S0154-EE07 1/4" 3.00" 5.90" 0.44" 440 0.18
S0154-EE08 5/16" 4.00" 7.00" 0.50" 800 0.33
S0154-EE10 3/8" 6.00" 10.25" 0.65" 1,200 0.68
S0154-EE13 1/2" 6.00" 10.81" 0.75" 2,200 1.31
S0154-EE16 5/8" 8.00" 14.32" 0.87" 2,800 2.40
S0154-EE20 3/4" 10.00" 17.31" 1.10" 3,500 4.33

DETAILS

  • 316 Stainless Steel, Cast
  • Manufactured by Suncor Stainless
[]
