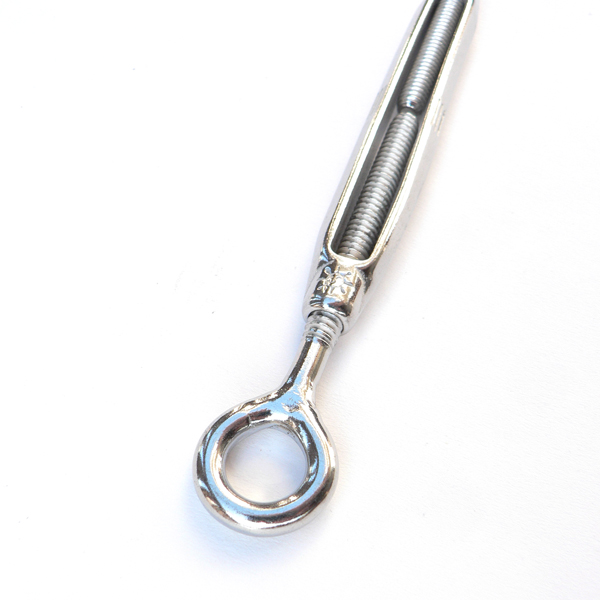

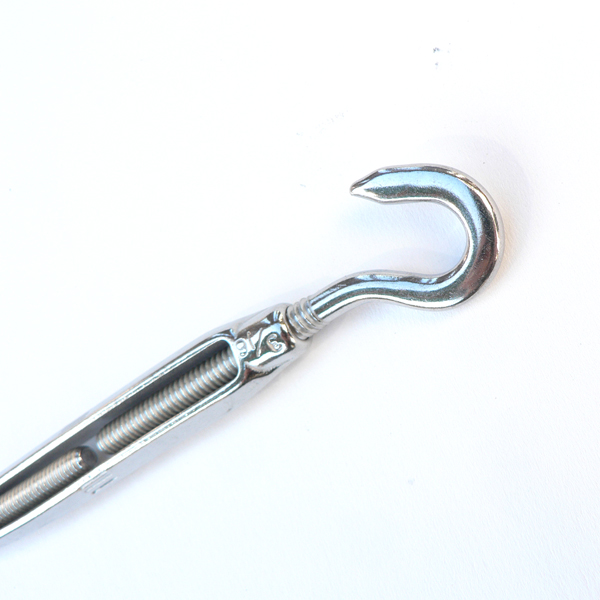

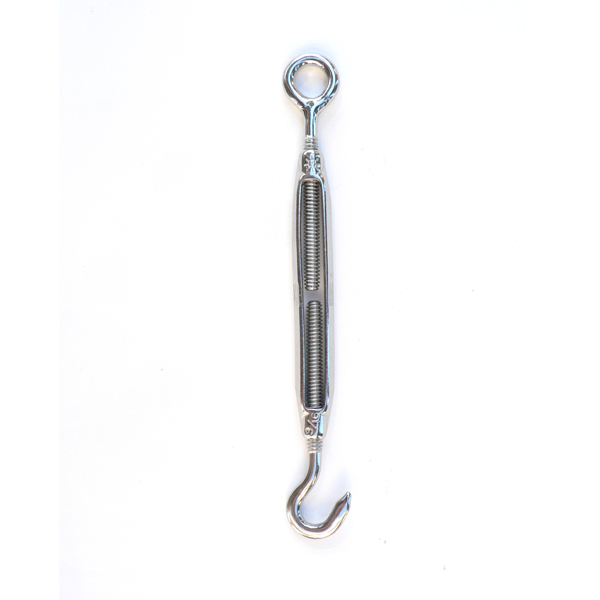

Cast Turnbuckle Hook & Eye

Model: S0154-HExx

Economical, yet high quality turnbuckle with precision cast body. Eye is formed and welded. Threads are standard "UNC".

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Turnbuckle Hook & Eye - 3/16" $13.16
Turnbuckle Hook & Eye - 1/4" $14.97
Turnbuckle Hook & Eye - 5/16" $20.69
Turnbuckle Hook & Eye - 3/8" $29.13
Turnbuckle Hook & Eye - 1/2" $46.09
Turnbuckle Hook & Eye - 5/8" $63.75
Turnbuckle Hook & Eye - 3/4" $98.57
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C D E WLL
S0154-HE05 3/16" 2.50" 5.12" 0.38" 0.30" 100
S0154-HE07 1/4" 3.00" 5.87" 0.44" 0.38" 200
S0154-HE08 5/16" 4.00" 7.12" 0.50" 0.44" 400
S0154-HE10 3/8" 6.00" 10.25" 0.65" 0.50" 700
S0154-HE13 1/2" 6.00" 11.62" 0.75" 0.63" 1,000
S0154-HE16 5/8" 8.00" 14.50" 0.87" 0.63" 1,600
S0154-HE20 3/4" 10.00" 17.00" 1.10" 0.85" 2,000

DETAILS

  • 316 Stainless Steel, Cast
  • Manufactured by Suncor Stainless
[]
