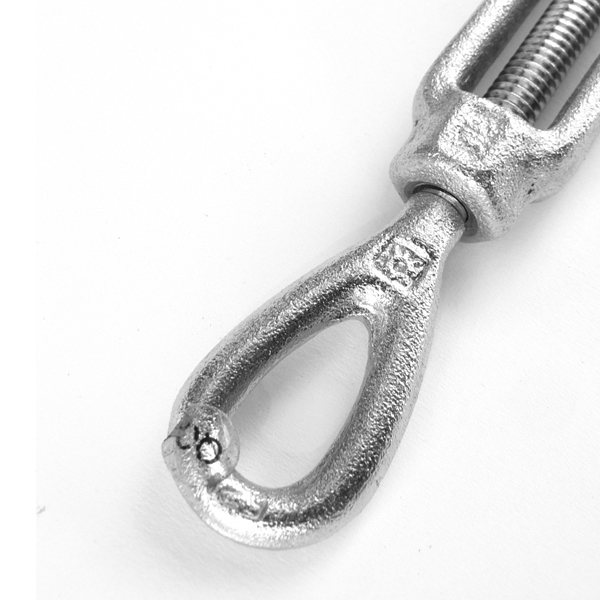

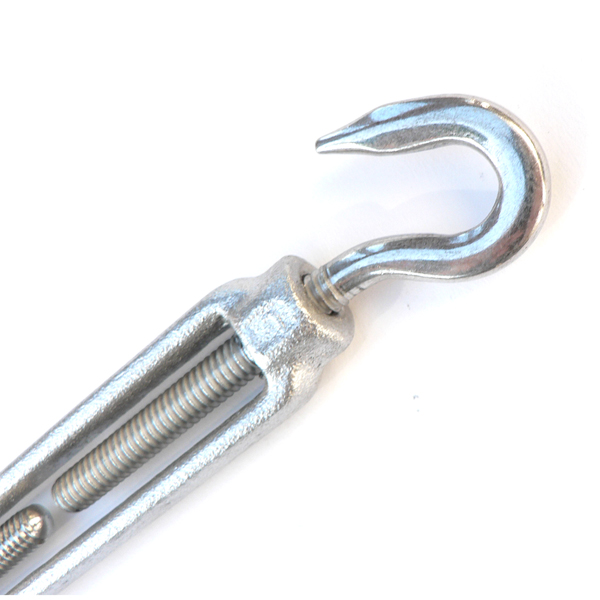

Part View Part View 2 Part View 3
[]

Forged Turnbuckle Hook & Eye

Model: S0110-HExx

Meets wll and dimensions of ASTM specification F1145-92 type 1, class F. Bodies and eyes are forged. Hooks are formed and cold forged.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Turnbuckle - Hook & Eye - 1/4" x 4" $29.49
Turnbuckle - Hook & Eye - 5/16" X 4-1/2" $42.48
Turnbuckle - Hook & Eye - 3/8" x 6" $65.97
Turnbuckle - Hook & Eye - 1/2" x 6" $99.79
Turnbuckle - Hook & Eye - 5/8" x 6" $130.47
Turnbuckle - Hook & Eye - 3/4" x 6" $154.36
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C D E WLL WT
S0110-HE07 1/4" 4.00" 7.50" 0.33" 0.39" 300 0.25
S0110-HE08 5/16" 4.50" 8.50" 0.41" 0.44" 500 0.45
S0110-HE10 3/8" 6.00" 10.75" 0.51" 0.52" 750 0.67
S0110-HE13 1/2" 6.00" 12.00" 0.75" 0.55" 1,050 1.20
S0110-HE16 5/8" 6.00" 13.50" 0.87" 0.57" 1,600 2.10
S0110-HE20 3/4" 6.00" 15.50" 1.00" 0.90" 2,000 3.00

DETAILS

  • 316-NM Stainless Steel, Forged
  • Manufactured by Suncor Stainless
[]
