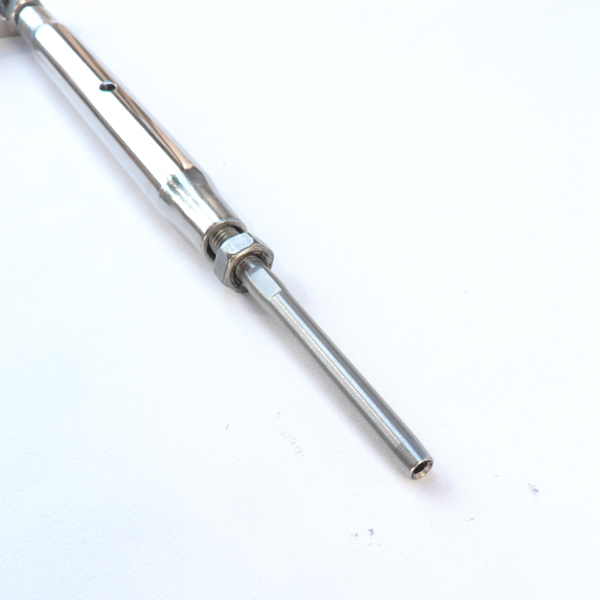

Part View Part View 2 Part View 3
[]

Turnbuckle Toggle & Swage

Model: S0784-07xx

Closed body turnbuckle with toggle and machine-swage stub. Threads are UNF (fine). Machine swage only.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


<
Turnbuckle Toggle & Swage - 3/16" x 1/16" $17.72
Turnbuckle Toggle & Swage - 3/16" x 3/32" $17.72
Turnbuckle Toggle & Swage - 1/4" x 3/32" $18.91
Turnbuckle Toggle & Swage - 1/4" x 1/8" $18.91
Turnbuckle Toggle & Swage - 1/4" x 5/32" $19.38
Turnbuckle Toggle & Swage - 5/16" x 5/32" $27.26
Turnbuckle Toggle & Swage - 5/16" x 3/16" $27.36
Turnbuckle Toggle & Swage - 3/8" x 3/16" $33.12
Turnbuckle Toggle & Swage - 3/8" x 1/4" $39.10
Turnbuckle Toggle & Swage - 1/2" x 1/4" $53.01
Turnbuckle Toggle & Swage - 1/2" x 1/4" $57.34
Turnbuckle Toggle & Swage - 5/8" x 3/8" $138.70
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
[]
DIMENSIONS
part diagram ITEM A B C D E F WT
S0782-0501 3/16" 1/16" 3.56" 6.62" 0.26" 0.19" 0.14
S0782-0502 3/16" 3/32" 3.56" 6.87" 0.26" 0.19" 0.14
S0782-0702 1/4" 3/32" 4.20" 7.62" 0.35" 0.23" 0.22
S0782-0703 1/4" 1/8" 4.20" 7.87" 0.35" 0.23" 0.25
S0782-0704 1/4" 5/32" 4.20" 8.12" 0.35" 0.23" 0.27
S0782-0904 5/16" 5/32" 4.32" 8.56" 0.40" 0.31" 0.40
S0782-0905 5/16" 3/16" 4.32" 9.00" 0.40" 0.31" 0.43
S0782-1005 3/8" 3/16" 4.90" 9.75" 0.56" 0.37" 0.64
S0782-1007 3/8" 1/4" 4.90" 10.44" 0.56" 0.37" 0.69
S0782-1307 1/2" 1/4" 5.87" 12.25" 0.63" 0.47" 1.32
S0782-1309 1/2" 5/16" 5.87" 13.00" 0.63" 0.47" 1.50
S0782-1610 5/8" 3/8" 7.50" 17.00" 0.80" 0.62" 2.69

DETAILS

  • 316 Stainless Steel, Stamped
[]
