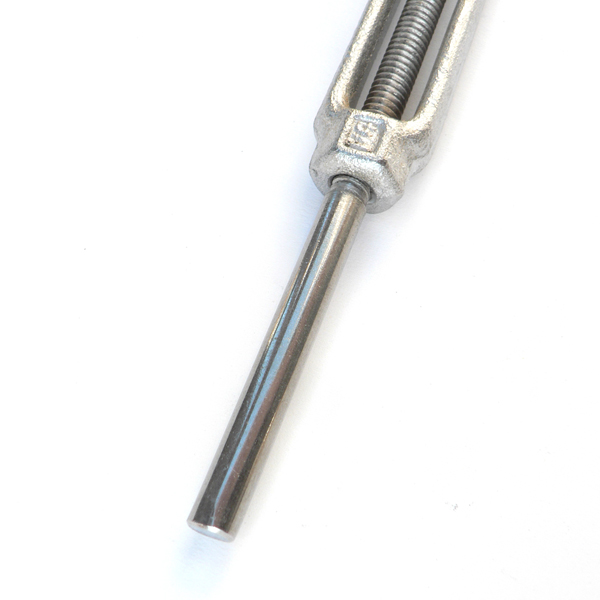

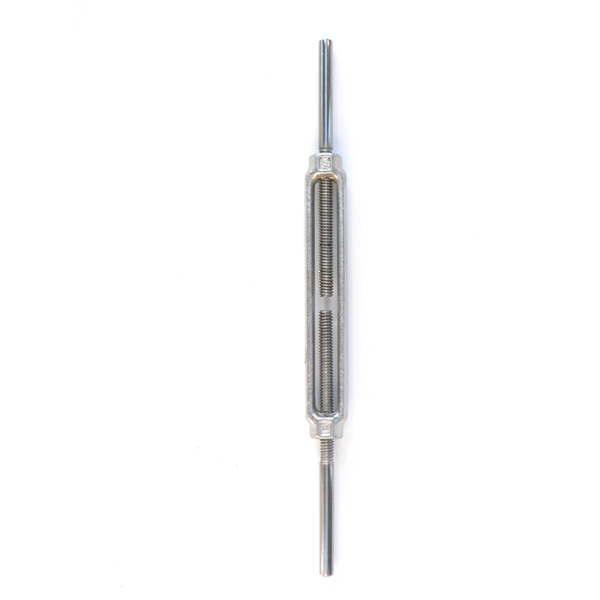

Part View Part View 2 Part View 3
[]

Forged Turnbuckle Stub & Stub

Model: S0112-SSxx

High qualitym very strong turnbuckle. Meets WLL and dimensions of ASTM specification F1145-92 type 1, class C.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Turnbuckle - Stub & Stub - 5/16" x 4-1/2" $35.06
Turnbuckle - Stub & Stub - 3/8" x 6" $45.03
Turnbuckle - Stub & Stub - 1/2" x 6" $65.89
Turnbuckle - Stub & Stub - 5/8" x 6" $103.34
Turnbuckle - Stub & Stub - 3/4" x 6" $127.17
Turnbuckle - Stub & Stub - 1" x 6" $237.98
Turnbuckle - Stub & Stub - 1" x 12" $274.00
Turnbuckle - Stub & Stub - 1-1/4" x 12" $472.76
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C WLL WT
S0112-SS07 1/4" 4.00" 9.00" 500 0.27
S0112-SS08 5/16" 4.50" 10.50" 800 0.67
S0112-SS10 3/8" 6.00" 13.00" 1,200 0.72
S0112-SS13 1/2" 6.00" 14.13" 2,200 1.23
S0112-SS16 5/8" 6.00" 15.00" 3,500 2.25
S0112-SS20 3/4" 6.00" 16.00" 5,200 3.19
S0112-SS25 1" 6.00" 18.00" 8,000 6.32
S0112-SS25-1 1" 12.00" 24.38" 8,000 10.43
S0112-SS32-1 1-1/4" 12.00" 26.00" 12,500 14.75

DETAILS

  • 316-NM Stainless Steel, Forged
  • Manufactured by Suncor Stainless
[]
