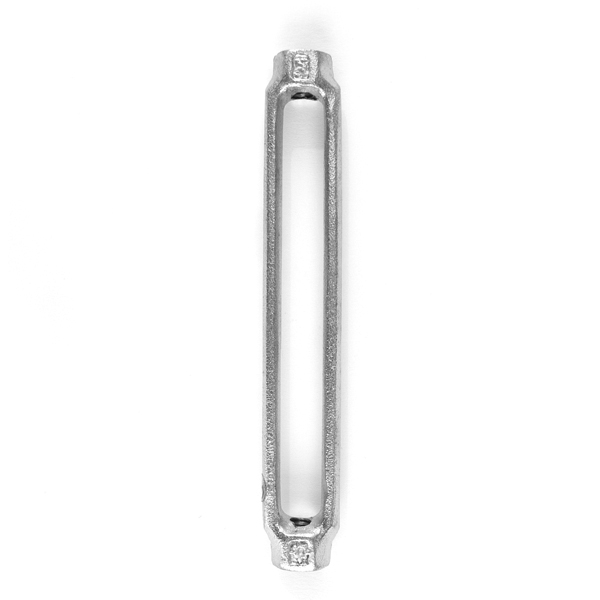

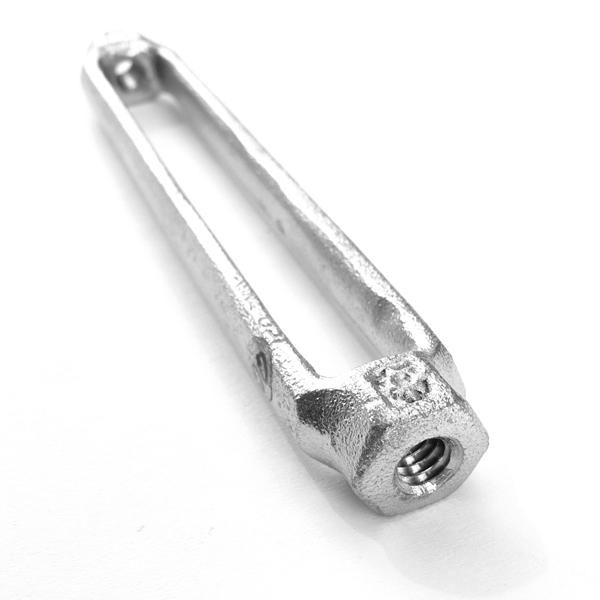

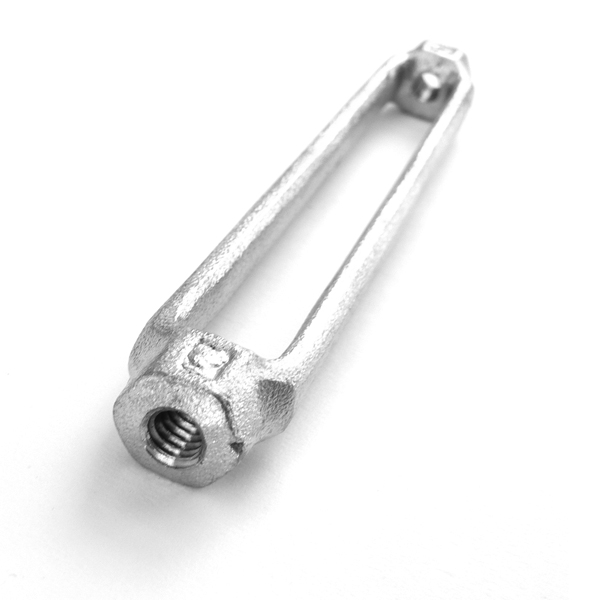

Part View Part View 2 Part View 3
[]

Forged Turnbuckle Body

Model: S0106-BDxx

Incredibly strong, Turnbuckle Body. Meets WLL and dimensions of ASTM specification. F1145-92 Type 1. 316-NM Stainless Steel

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Turnbuckle - Body - 1/4" x 4" $18.30
Turnbuckle - Body - 5/16" x 4-1/2" $25.48
Turnbuckle - Body - 3/8" x 6" $35.72
Turnbuckle - Body - 1/2" x 6" $49.82
Turnbuckle - Body - 5/8" x 6" $64.85
Turnbuckle - Body - 3/4" x 6" $74.75
Turnbuckle - Body - 1" x 6" $96.52
Turnbuckle - Body - 1" x 12" $112.63
Turnbuckle - Body - 1-1/4" x 12" $205.75
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C D WLL WT
S0106-BD07 1/4" 4.00" 4.75" 0.72" 500 0.15
S0106-BD08 5/16" 4.50" 5.50" 0.82" 800 0.25
S0106-BD10 3/8" 6.00" 7.13" 0.97" 1,200 0.35
S0106-BD13 1/2" 6.00" 7.50" 1.16" 2,200 0.55
S0106-BD16 5/8" 6.00" 7.81" 1.38" 3,500 0.90
S0106-BD20 3/4" 6.00" 8.19" 1.69" 5,200 1.15
S0106-BD25 1" 6.00" 9.00" 2.31" 8,000 2.69
S0106-BD25-1 1" 12.00" 14.81" 2.31" 8,000 4.17
S0106-BD32-1 1-1/4" 12.00" 15.13" 2.62" 12,500 5.90

DETAILS

  • 316-NM Stainless Steel, Forged
  • Manufactured by Suncor Stainless
[]
