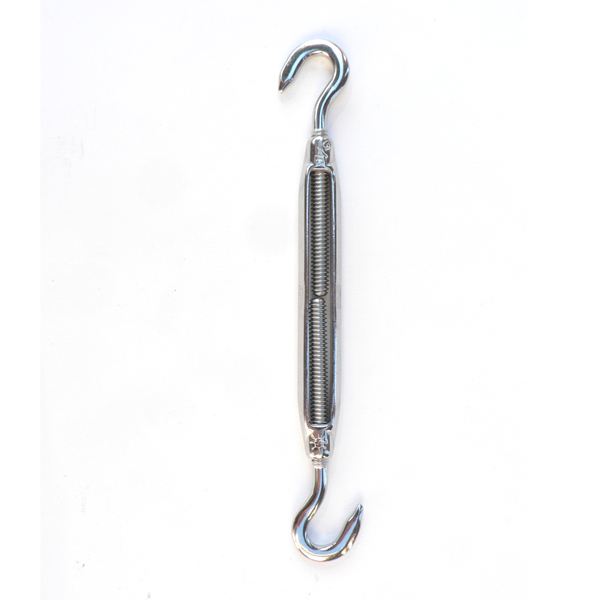

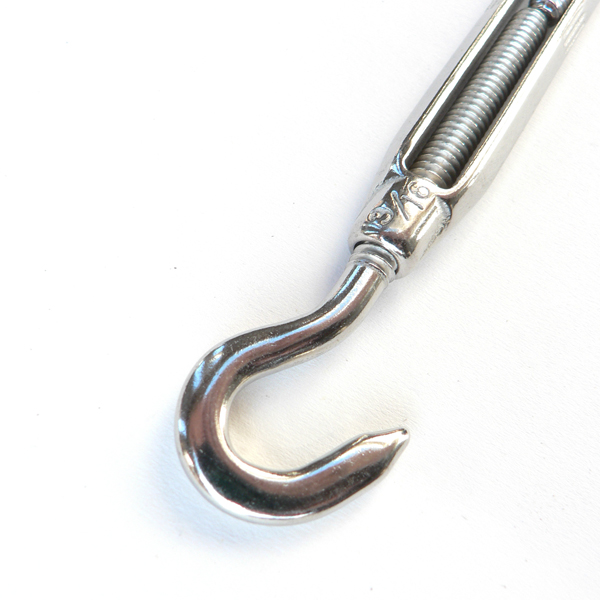

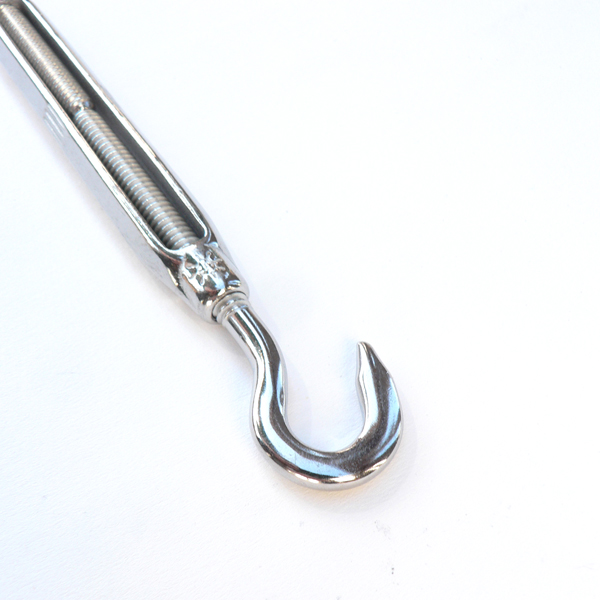

Part View Part View 2 Part View 3
[]

Cast Turnbuckle Hook & Hook

Model: S0154-HHxx

Economical, yet high quality turnbuckle with precision cast body. Hooks are formed. Threads are standard "UNC".

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Turnbuckle Hook & Hook - 3/16" $13.17
Turnbuckle Hook & Hook - 1/4" $14.97
Turnbuckle Hook & Hook - 5/16" $20.69
Turnbuckle Hook & Hook - 3/8" $29.12
Turnbuckle Hook & Hook - 1/2" $46.09
Turnbuckle Hook & Hook - 5/8" $63.52
Turnbuckle Hook & Hook - 3/4" $97.91
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
[]
DIMENSIONS

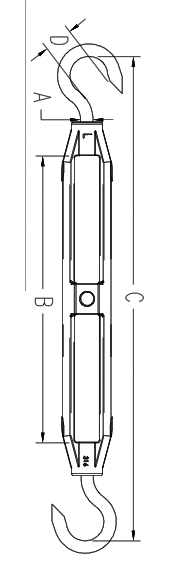

part diagram ITEM A B C D WLL WT
S0154-HH05 3/16" 2.50" 4.94" 0.30" 100 0.07
S0154-HH07 1/4" 3.00" 6.18" 0.38" 200 0.17
S0154-HH08 5/16" 4.00" 7.56" 0.44" 400 0.32
S0154-HH10 3/8" 6.00" 10.38" 0.50" 700 0.66
S0154-HH13 1/2" 6.00" 10.62" 0.63" 1,000 1.26
S0154-HH16 5/8" 8.00" 14.38" 0.63" 1,500 2.30
S0154-HH20 3/4" 10.00" 16.87" 1.10" 2,000 3.85

DETAILS

  • 316 Stainless Steel, Cast
  • Manufactured by Suncor Stainless
[]
