Additional Images:
Part View
[]

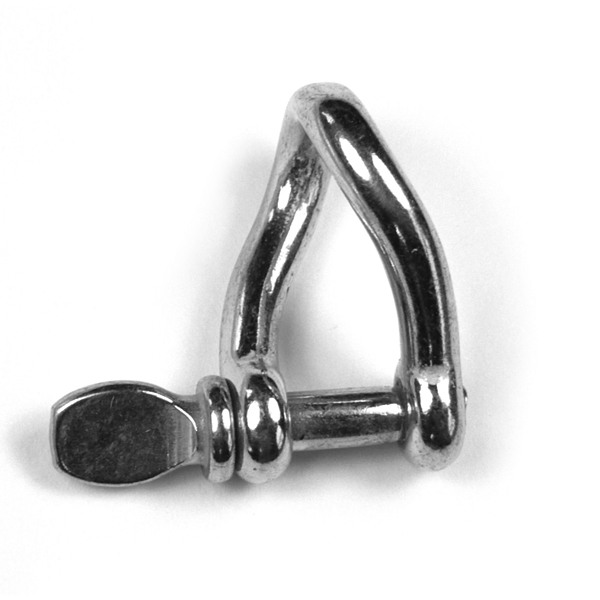

Twist Shackle

Model: S0163-00xx

Twist Shackle with screw pin. 304 Stainless Steel.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Twist Shackle 5/32" $4.32
Twist Shackle 3/16" $4.74
Twist Shackle 1/4" $5.58
Twist Shackle 5/16" $7.86
Twist Shackle 3/8" $11.40
Twist Shackle 1/2" $15.84
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram Item A Size B C D WLL Weight
S0163-0004 5/32" 0.16" 0.3" 0.63" 350 lb 0.02 lb
S0163-0005 3/16" 0.19" 0.38" 0.83" 530 lb 0.04 lb
S0163-0006 1/4" 0.23" 0.42" 1" 750 lb 0.07 lb
S0163-0008 5/16" 0.31" 0.55" 1.30" 1,300 lb 0.16 lb
S0163-0010 3/8" 0.38" 0.71" 1.8" 1,700 lb 0.3 lb
S0163-0012 1/2" 0.47" 0.78" 2.20" 2,200 lb 0.51 lb

DETAILS

  • 304 Stainless Steel, Cast
[]
