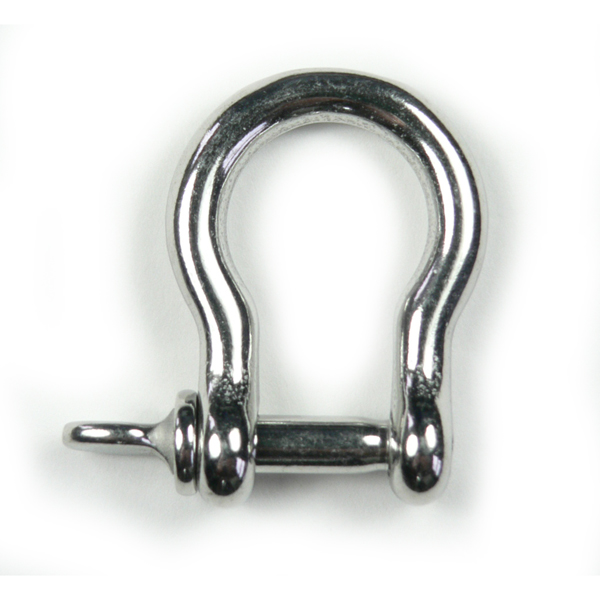

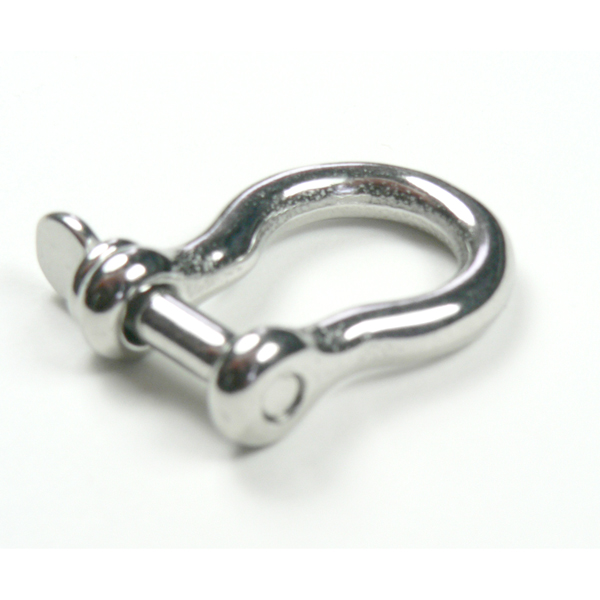

Part View Part View2 Part View 3
[]

Bow Shackle

Model: S0116-00xx

Bow Shackle with screw pin. 316 Stainless Steel.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Bow Shackle 5/32" OUT OF STOCK until 11/07 $2.68
Bow Shackle 3/16" $3.76
Bow Shackle 1/4" $4.33
Bow Shackle 5/16" $5.70
Bow Shackle 3/8" BACKORDERED $7.92
Bow Shackle 15/32" $13.22
Bow Shackle 1/2" $17.04
Bow Shackle 5/8" $25.71
Bow Shackle 3/4" $49.99
Bow Shackle 7/8" $72.10
Bow Shackle 1" $112.18
Bow Shackle 1-1/4" $216.60
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram Item A Size B C D WLL Weight
S0116-0004 5/32" 0.16" 0.33" 0.75" 350 lb 0.02 lb
S0116-0005 3/16" 0.19" 0.43" 0.94" 530 lb 0.04 lb
S0116-0006 1/4" 0.23" 0.48" 1.08" 750 lb 0.07 lb
S0116-0008 5/16" 0.31" 0.67" 1.46" 1,300 lb 0.16 lb
S0116-0010 3/8" 0.39" 0.79" 1.77" 1,700 lb 0.26 lb
S0116-0012 15/32" 0.48" 0.94" 2.16" 2,200 lb 0.5 lb
S0116-0013 1/2" 0.51" 1.04" 2.33" 3,000 lb 0.77 lb
S0116-0016 5/8" 0.63" 1.25" 3" 4,000 lb 1.21 lb
S0116-0020 3/4" 0.74" 1.5" 3.34" 5,600 lb 1.8 lb
S0116-0022 7/8" 0.86" 1.72" 3.85" 6,700 lb 2.9 lb
S0116-0025 1" 0.96" 1.95" 4.42" 9,000 lb 4.34 lb
S0116-0032 1-1/4" 1.24" 2.5" 5.44" 10,000 lb 9.2 lb

DETAILS

  • 316 Stainless Steel, Precision Cast
[]
