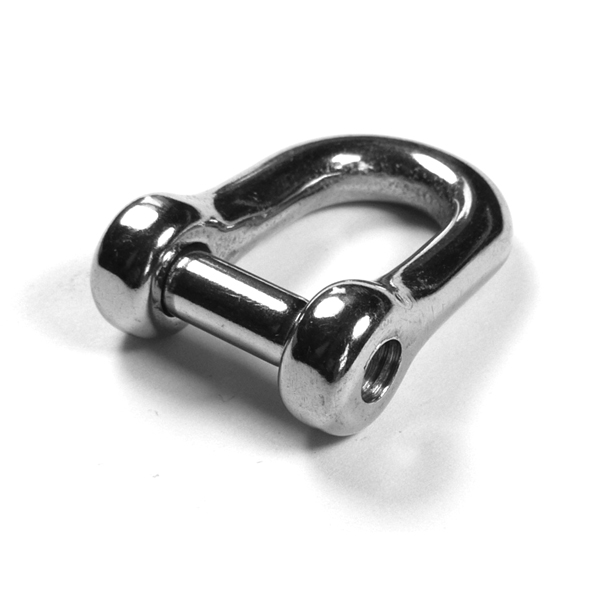

Straight D Shackle

Model: S0115-NSxx

Straight D Shackle with snagless pin. Pin sits flush with body of shackle. Use a locking fluid with this type of shackle.
[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Straight D Shackle - No Snag Pin 1/4" $5.45
Straight D Shackle - No Snag Pin 5/16" $7.58
Straight D Shackle - No Snag Pin 3/8" OUT OF STOCK TIL 12/07 $10.24
Straight D Shackle - No Snag Pin 15/32" $14.82
Straight D Shackle - No Snag Pin 1/2" $18.71
Straight D Shackle - No Snag Pin 5/8" $26.18
Straight D Shackle - No Snag Pin 3/4" $41.44
Straight D Shackle - No Snag Pin 7/8" $65.95
Straight D Shackle - No Snag Pin 1" $102.29
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram Item Number Size A B C D WLL
S0115-NS06 1/4 1/4 1/4 15/32 13/16 750
S0115-NS08 5/16 5/I6 5/I6 5/8 1-1/8 1,320
S0115-NS10 3/8 3/8 3/8 3/4 1-3/8 1,700
S0115-NS12 15/32 15/32 15/32 15/16 1-5/8 2,200
S0115-NS13 1/2 1/2 1/2 1 1-3/4 3,000
S0115-NS16 5/8 5/8 5/8 1-1/4 2-3/16 4,600
S0115-NS20 3/4 3/4 3/4 1-1/2 2-5/8 6,100
S0115-NS22 7/8 7/8 7/8 1-3/4 3 8,000
S0115-NS25 1 1 1 2 3-3/8 10,000

DETAILS

  • 316 Stainless Steel, Cast
[]
