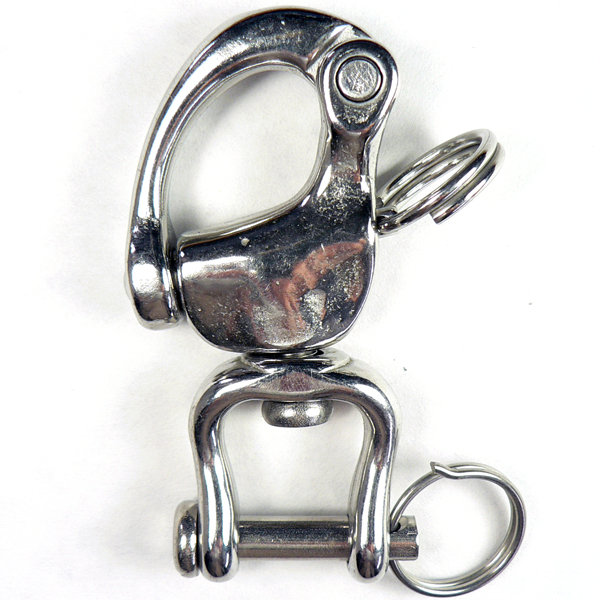

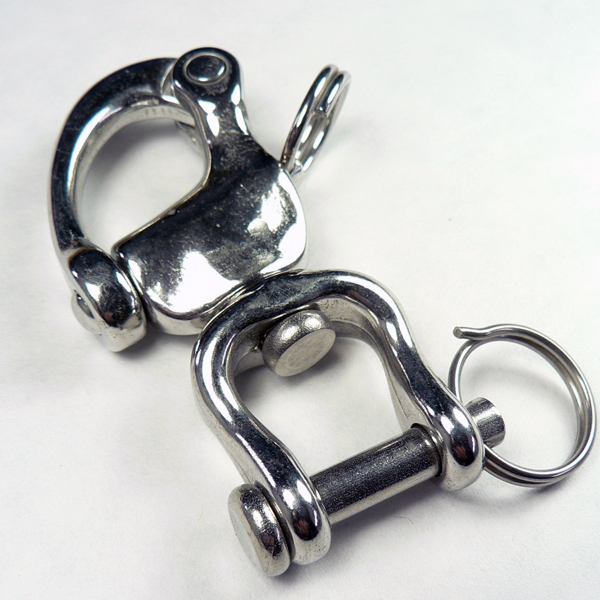

Part View Part View 2 Part View 3
[]

Swivel Snap Shackle w/ Jaw

Model: S0171-000x

Swivel Snap Shackle w/ Jaw made of 316 Stainless Steel, Body and Jaw precision Cast. High polish. Beautiful part. Includes removable shackle pin.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Jaw Swivel Snap Shackle 2-3/4" $18.22
Jaw Swivel Snap Shackle 3-1/2" $23.35
Jaw Swivel Snap Shackle 5" $41.21
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
DIMENSIONS
part diagram Part No. Size(in) A(in) B(in) C(in) D(in) E(in) WLL(lb) WT(lb)
S0171-0001 2-3/4 1/2 3/8 7/16 2-5/8 1/4 800 0.14
S0171-0002 3-1/2 5/8 1/2 1/2 3-3/8 1/4 1200 0.27
S0171-0003 5 1 7/8 7/8 5 1/2 1800 0.89


DETAILS

  • 316 Stainless
  • Precision Cast
  • Manufactured by Suncor Stainless
[]
