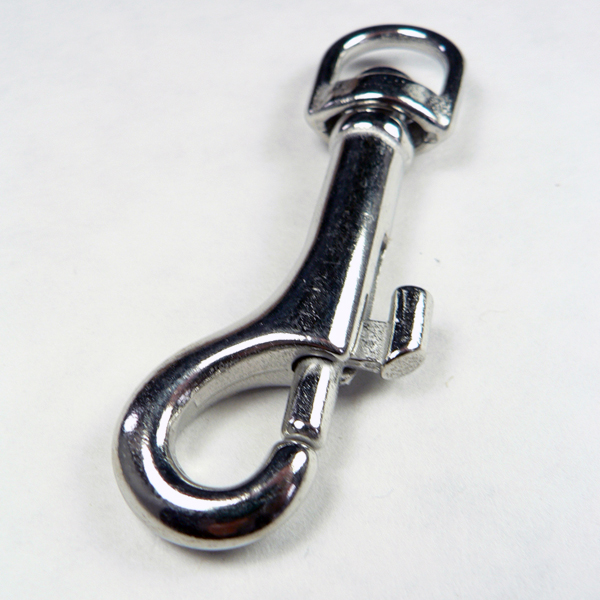

Swivel Bolt Snap

Model: S0171-000x

Swivel Bolt Snap made of 316 Stainless Steel, Precision Cast. High polish. Beautiful part.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Swivel Bolt Snap - 2-1/2" $8.66
Swivel Bolt Snap - 3" $9.18
Swivel Bolt Snap - 3-3/8" $9.58
Swivel Bolt Snap - 3-3/4" $10.03
Swivel Bolt Snap - 4-3/4" BACKORDERED UNTIL 4/08 $10.60
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
DIMENSIONS
part diagram Part No. A B C D E WT
S0176-0000 7/16 2-1/2 5/16 1/8 1/4 0.05
S0176-0001 1/2 3 5/16 5/32 9/32 0.07
S0176-0002 5/8 3-3/8 5/16 5/32 5/16 0.10
S0176-0003 3/4 3-3/4 7/16 3/16 1/2 0.12
S0176-0004 1-3/16 4-3/4 1/2 1/4 9/16 0.24


DETAILS

  • 316 Stainless
  • Precision Cast
[]
