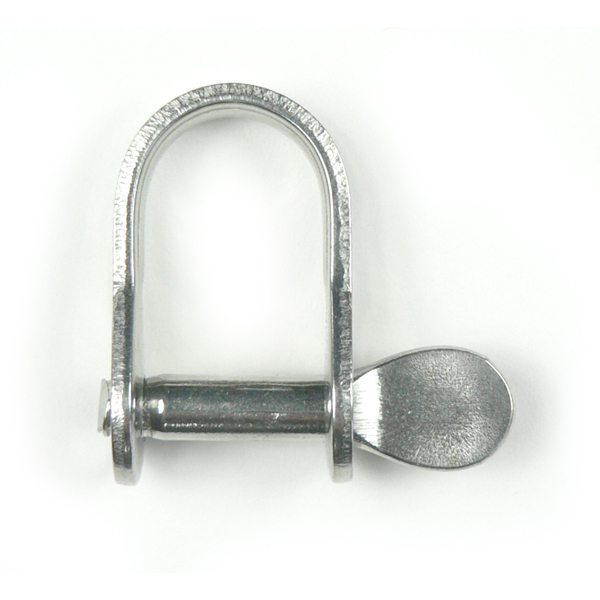

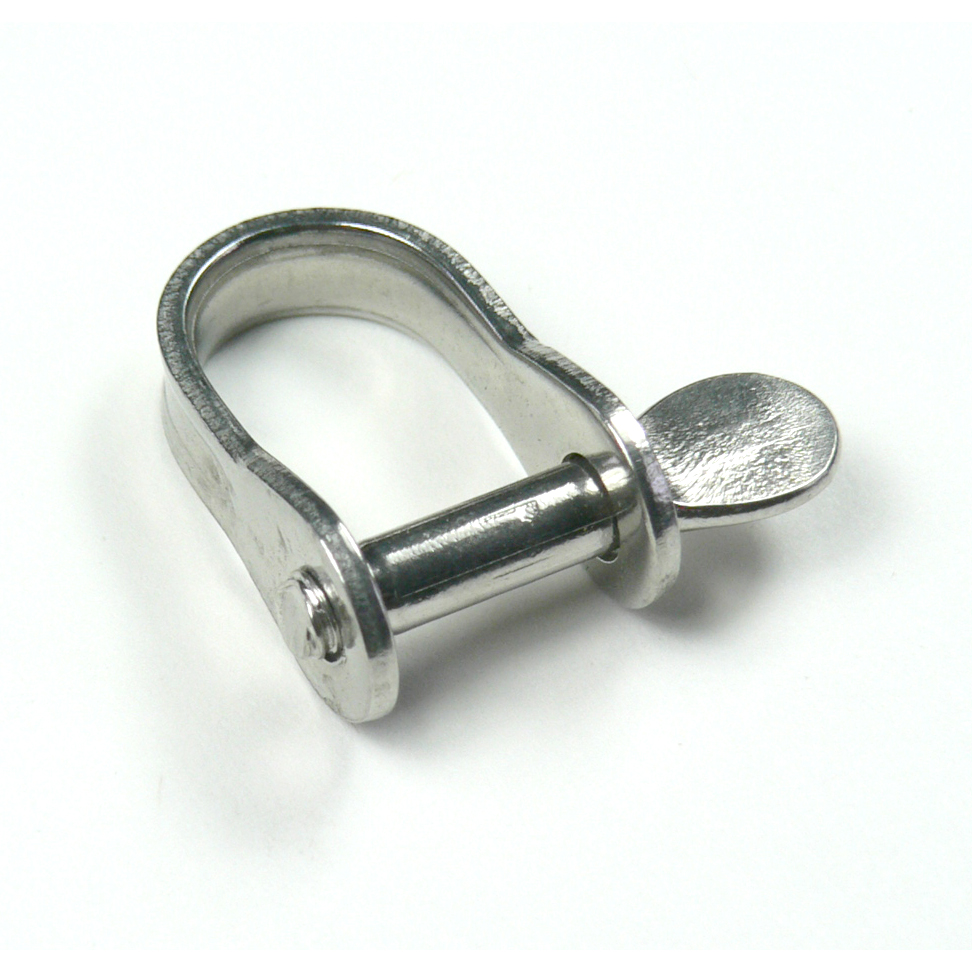

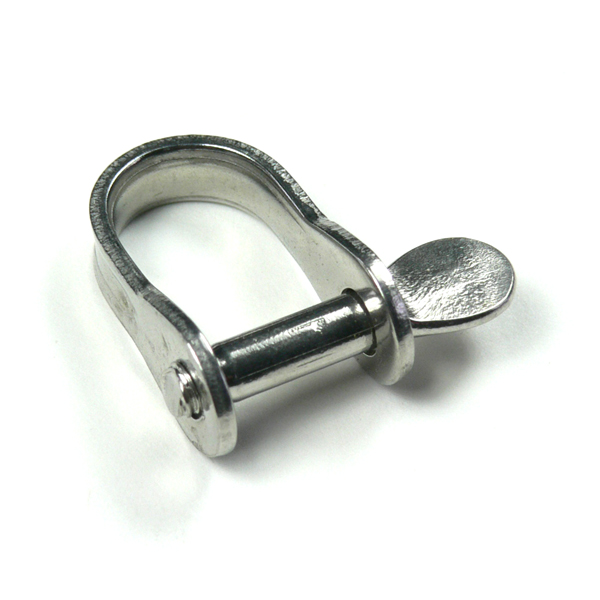

Part View Part View 2 Part View 3
[]

Stamped "D" Shackle

Model: S0118-00xx

Standard "D" Shackle with screw pin.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Stamped "D" Shackle 5/32" $1.32
Stamped "D" Shackle 3/16" $1.88
Stamped "D" Shackle 1/4" $2.80
Stamped "D" Shackle 5/16" $5.78
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram Item A Size B C D WLL Weight
S0118-0004 5/32" 0.16" 0.40" 0.59" 200 lb 0.01 lb
S0118-0005 3/16" 0.20" 0.40" 0.76" 250 lb 0.02 lb
S0118-0006 1/4" 0.24" 0.54" 0.95" 300 lb 0.03 lb
S0118-0008 5/16" 0.32" 0.71" 1.53" 450 lb 0.07 lb

DETAILS

  • 316 Stainless Steel, Cast
[]
