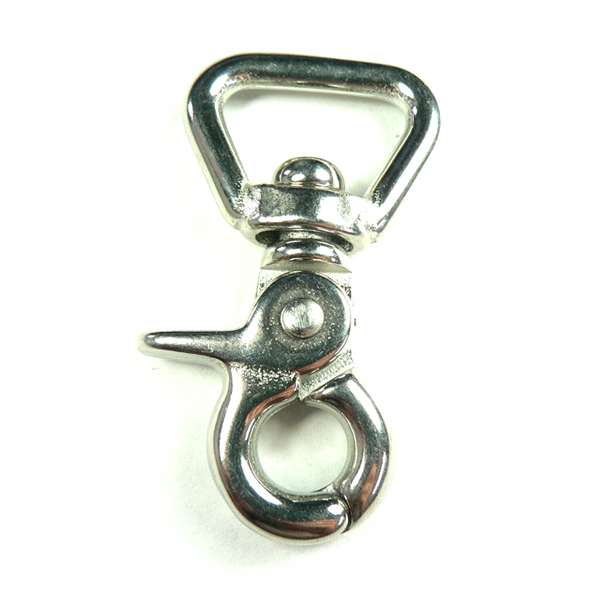

Trigger Snap "D" Bail

Model: S0192-000x

A high-quality, very strong stainless steeltrigger snap. Precision cast. Bail is "D" shaped.
[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Trigger Snap "D" Bail - 5/8" $9.72
Trigger Snap "D" Bail - 3/4" $10.26
Trigger Snap "D" Bail - 1" $10.50
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
[]
DIMENSIONS
part diagram Item A (size) B C D WLL (lb) WT (lb)
S0192-0001 5/8" 2.43" .23" .43" 200 .12
s0192-0002 3/4" 2.5" .23" .43" 200 .12
s0192-0003 1" 2.65" .22 .43" 200 .13

DETAILS

  • 316 Stainless Steel, Stamped
[]
