Additional Images:

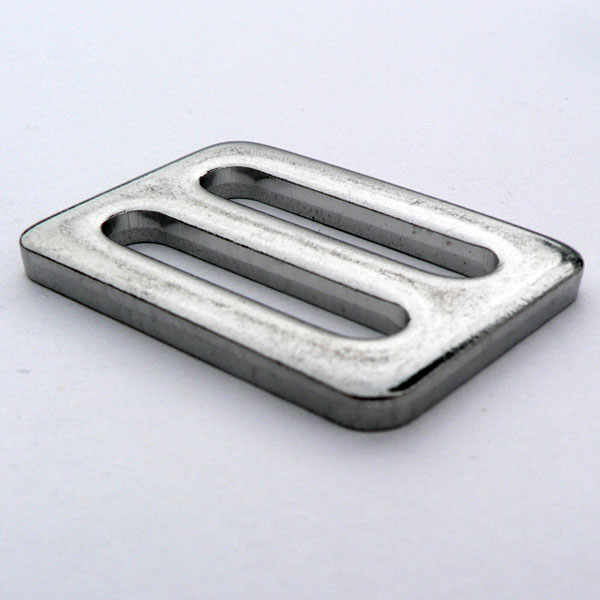

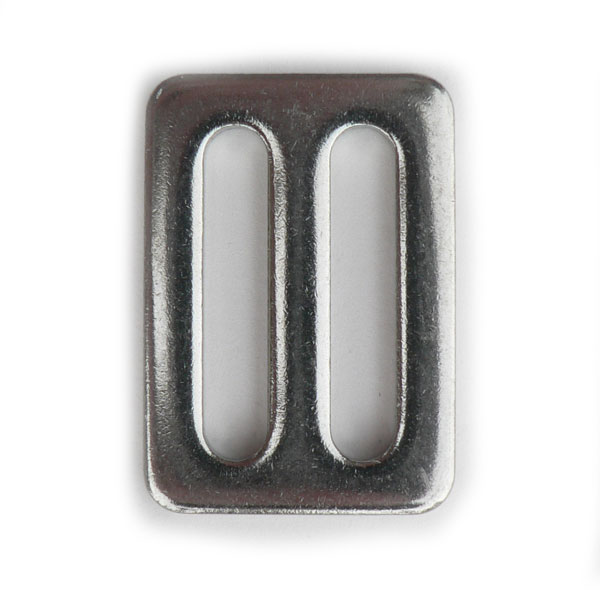

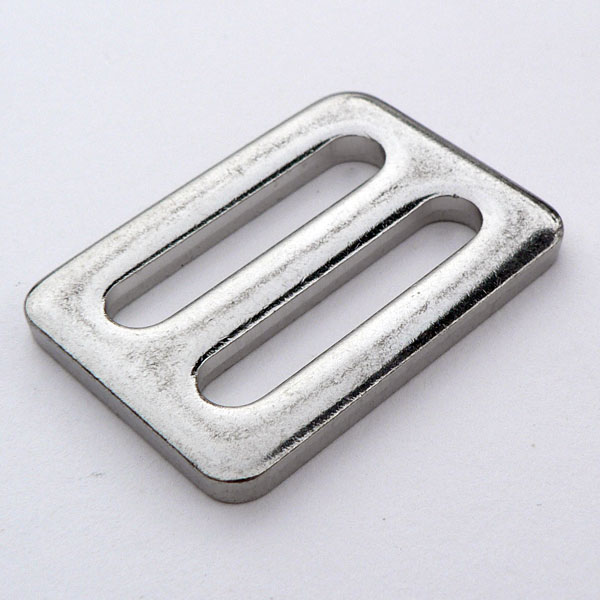

Part View Part View 2 Part View 3
[]

Web Threading

Model: S0215-00xx

This web threading plate is probably two or three times stronger than the metal plate that’s on your gear at present and much stronger than the plastic ones. If you want to retrofit your gear with a stronger component that won’t corrode, this baby is the answer. If you are making your own webbing strap or tie-down assembly, this part can be an integral element. If you loop your webbing through one slot and secure the loop with a stitch or another one of these threading plates, the other slot can accept the hook end of our Flat Hook (BPS0210-0025). This provides a simple and strong quick connect junction. This is a straight forward, strong, multi-purpose and functional part. This part is a heavy gauge, superior material, application of a tried and true design.

See also our Titanium Web Threading Plate..

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Web Threading Plate 1" x 7/8" $2.43
Web Threading Plate 1-1/2" x 1" $2.36
Web Threading Plate 2" x 1-1/4" $2.91
In Stock - Usually ships in 1-2 business days. Add to Cart
DIMENSIONS
part diagram ITEM A B C D WLL WT
S0215-0025 1" 0.15" 0.68" 1.28" 150 0.03
S0215-0038 1-1/2" 0.24" 1.18" 2.04" 200 0.05
S0215-0050 2" 0.25" 1.25" 2.50" 250 0.07

DETAILS

  • 316 Stainless Steel Stamped
  • Working Load Limit: 300 lbs. & up
[]
