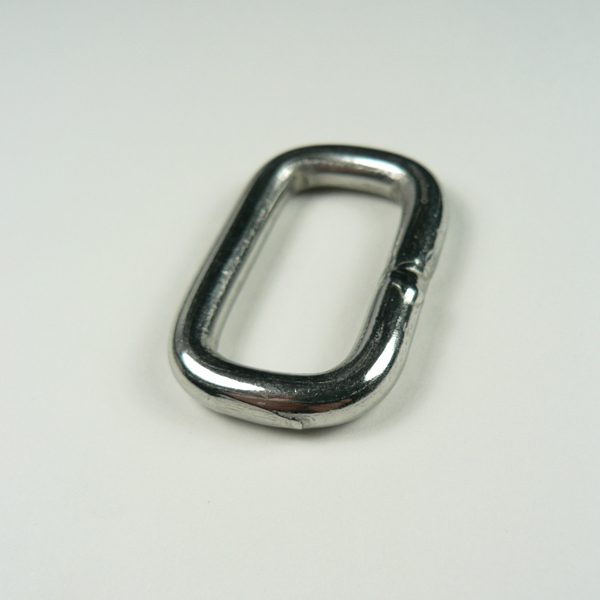

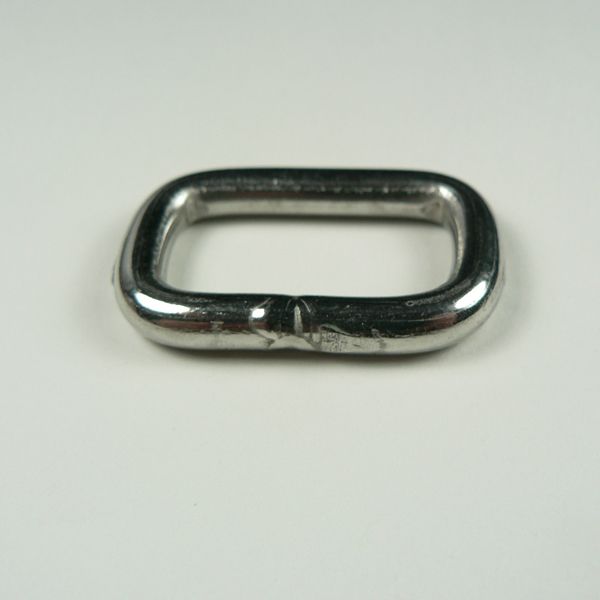

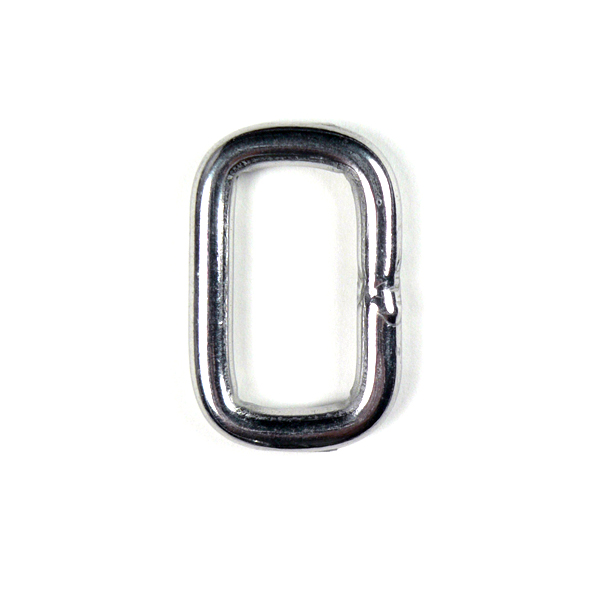

Part View Part View 2 Part View 3
[]

Rectangular Link

Model: S0139-Rxxx

This is a simple, strong welded Rectangular Link made out of 316 stainless steel.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Rectangular Link - 3/16" x 1/2" x 1" $1.65
Rectangular Link - 3/16" x 1/2" x 2" $2.34
Rectangular Link - 1/4" x 1" x 2" $3.80
Rectangular Link - 5/16" x 1-1/2" x 2-1/2" $4.07
Rectangular Link - 5/16" x 1-1/2" x 3" $5.40
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
DIMENSIONS
part diagram ITEM A B C WLL WT
S0139-R525 3/16" 0.50" 1.00" 600 0.03
S0139-R550 3/16" 0.50" 2.00" 550 0.05
S0139-R650 1/4" 1.00" 2.00" 800 0.08
S0139-R865 5/16" 1.50" 2.50" 1,200 0.19
S0139-R875 5/16" 1.50" 3.00" 1,100 0.22

DETAILS

  • 316 Stainless
[]
