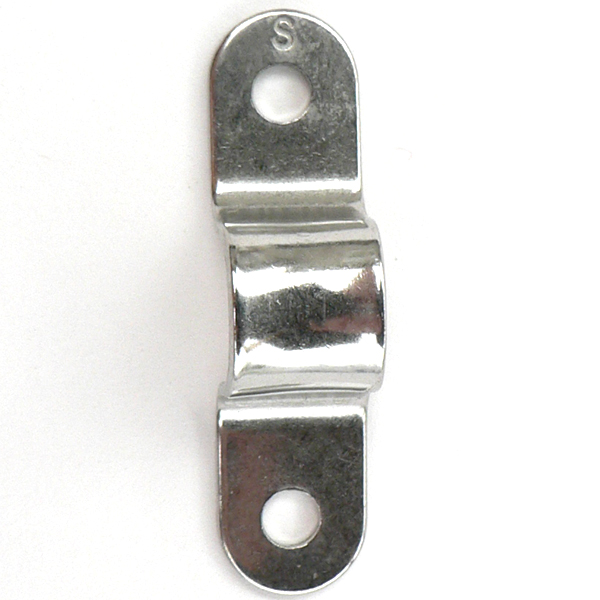

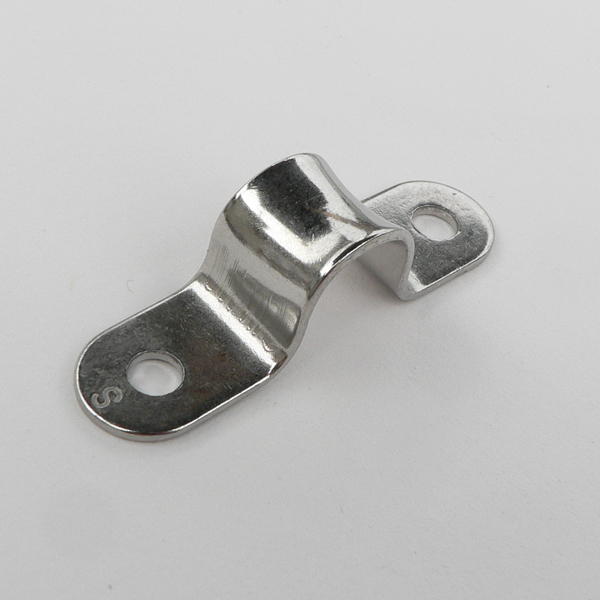

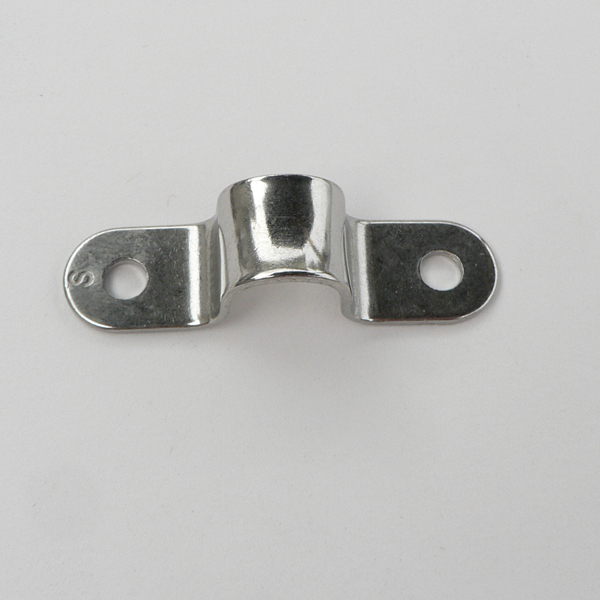

Part View Part View 2 Part View 3
[]

Two Hole Eye Strap

Model: S3708-00xx

Two Hole Eye Strap with rounded saddle. Saddle prevents chafe of rope on edges. Size is tee maximum inside diameter. 304 Stainless steel

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Two Hole Eye Strap - 3/8" $0.51
Two Hole Eye Strap - 1/2" $0.67
Two Hole Eye Strap - 5/8" $1.46
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM SIZE A B C WLL WT
S3708-0010 3/8" 0.32" 0.43" 1.15" 50 0.01
S3708-0013 1/2" 0.50" 0.28" 1.27" 75 0.01
S3708-0016 5/8" 0.65" 0.50" 1.55" 100 0.02

DETAILS

  • 304 Stainless Steel, Stamped
[]
