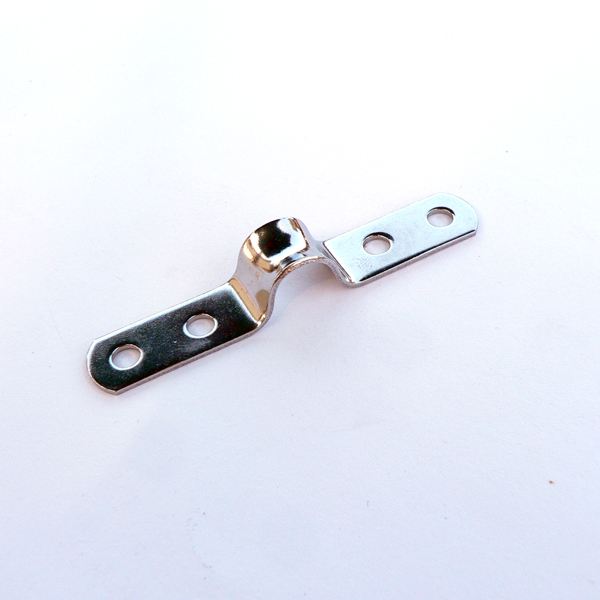

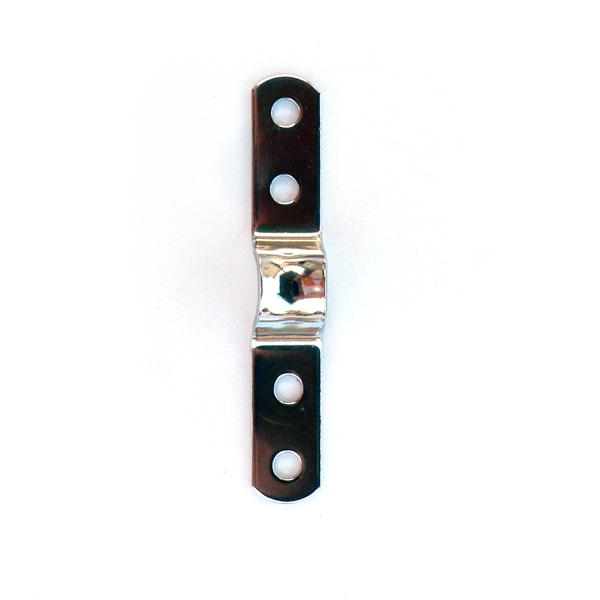

Part View Part View 2 Part View 3
[]

Four Hole Eye Strap

Model: S3709-00xx

Four hole eye strap with rounded saddle. Saddle prevents chafe of rope on edges. Size is tee maximum inside diameter. 304 Stainless steel

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Four Hole Eye Strap - 3/8" $0.53
Four Hole Eye Strap - 1/2" $0.57
Four Hole Eye Strap - 5/8" $0.67
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
[]
DIMENSIONS
part diagram ITEM SIZE A B C D WLL WT
S3709-0010 3/8" 0.33" 0.43" 1.15" 2.10" 75 .02
S3709-0013 1/2" 0.44" 0.43" 1.30" 2.24" 75 .02
S3709-0016 5/8" 0.55" 0.43" 1.40" 2.35" 75 .02

DETAILS

  • 304 Stainless Steel, Stamped
[]
