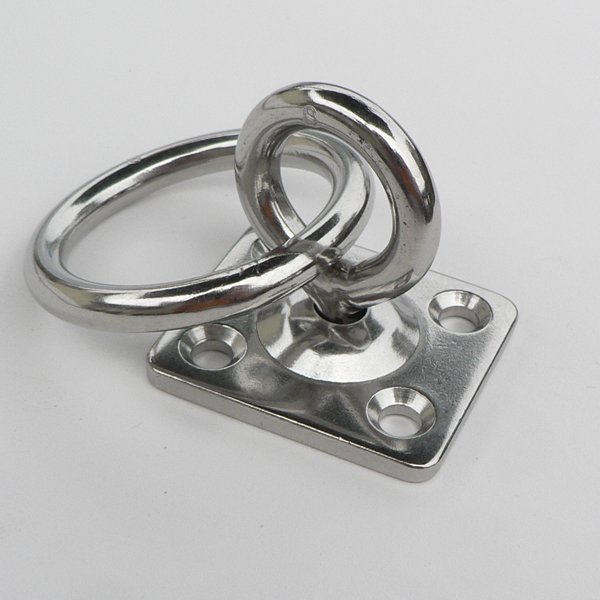

Swivel Pad Eye with Ring

Model: S3714-R00x

A swiveling pad eye -- great attachment point where lines or chain need adjustable approach. Ring with larger ring rotates 360 degrees. Ring rotates 360 degrees. Mounting holes are 5/32" except for S3714-0008, which has 3/16" mounting holes. Screws not included. See also our Swivel Pad Eye.


		Stainless Steel Facts See our All About Stainless Guide to learn about the materials from which these parts are made.



		Hardware Terms See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.


		Suggested Tools These tools and materials are suggested for installation.

Learn More: Product Details | Accessories | Tools and Installation Materials

DIMENSIONS

ITEM	A	B	C	D	E	WLL	WT
S3714-R005	3/16"	1.21"	0.89"	0.72"	2.50"	200	0.10
S3714-R006	1/4"	1.61"	1.02"	0.78"	3.16"	300	0.18
S3714-R008	5/16"	1.98"	1.38"	0.99"	3.75"	480	0.32

DETAILS

304 Stainless Steel, Stamped

Swivel Pad Eye w/ Ring - 3/16"	$4.85
Swivel Pad Eye w/ Ring - 1/4"	$6.44
Swivel Pad Eye w/ Ring - 5/16"	$9.46
In Stock - Usually ships in 1-2 business days.	Add to Cart
