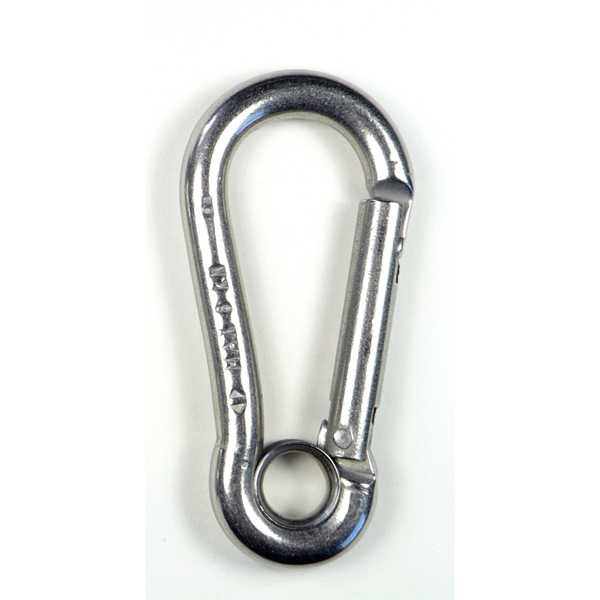

Spring Clip, Special Gate with Eye

Model: S0143-00xx

Carabiner style clip made of stainless steel. Ideal for quickly attaching two or more items together. Great key clip for consolidating separate key rings. Attaches to chain, fixed and mounted rings and rope tethers and lanyards.

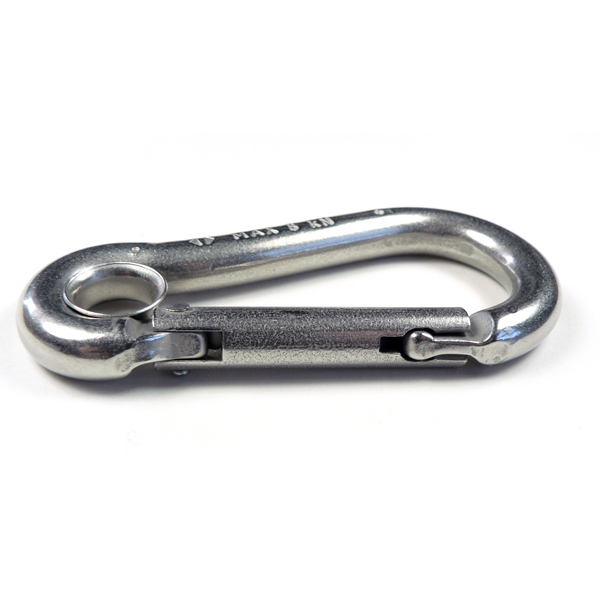

Gate operates at slight angle, allowing for more clearance.


		Stainless Steel Facts See our All About Stainless Guide to learn about the materials from which these parts are made.



		Hardware Terms See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.


		Suggested Tools These tools and materials are suggested for installation.

Learn More: Product Details | Accessories | Tools and Installation Materials

DIMENSIONS

Item	A Size	B	C	D	WLL	Weight
S0143-0080	3-1/4"	0.39"	0.54"	0.31"	500 lb	0.16 lb
S0143-0100	4"	0.45"	.62"	0.38"	700 lb	0.30 lb
S0143-0120	4-3/4"	0.58"	.85"	0.43"	1000 lb	0.43 lb

DETAILS

316 Stainless Steel, Stamped

Spring Clip (Special Gate) with Eye 3-1/4""	$17.91
Spring Clip (Special Gate) with Eye4"	$25.04
Spring Clip (Special Gate) with Eye 4-3/4"	$26.41
In Stock - Usually ships in 1-2 business days.	Add to Cart
