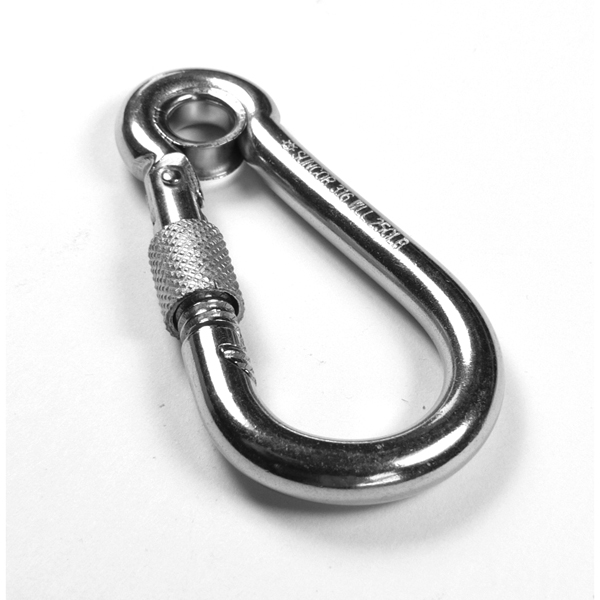

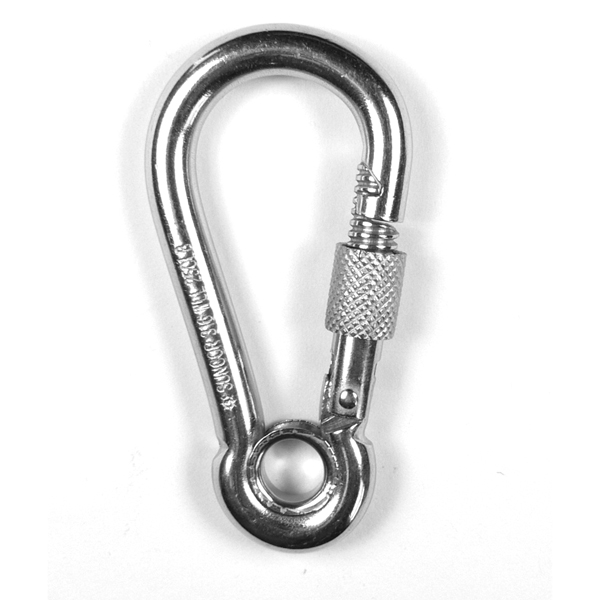

Screw Lock Spring Clip

Model: S0181-00xx

Clip for secure environments. Screw lock is one-hand operable. Will not open with use of lock. Lock must be unscrewed to release gate.
[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Screw Lock Spring Clip 2-3/8" $3.96
Screw Lock Spring Clip 3-1/4" $10.79
Screw Lock Spring Clip 4" $14.28
Screw Lock Spring Clip 5" $17.25
Screw Lock Spring Clip 5-3/4" $19.00
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram Item A Size B C D WLL Weight
S0181-0060 2-3/8" 0.25" 0.31" 0.25" 210 lb 0.07 lb
S0181-0080 3-1/4" 0.37" 0.37" 0.31" 390 lb 0.18 lb
S0181-0100 4" 0.50" 0.56" 0.37" 530 lb 0.29 lb
S0181-0120 5" 0.62" 0.68" 0.43" 880 lb 0.42 lb
S0181-0140 5-3/4" 0.75" 0.75" 0.50" 890 lb 0.63 lb

DETAILS

  • 316 Stainless Steel, Cast
[]
