Additional Images:
Part View Part View 2 Part View 3
[]

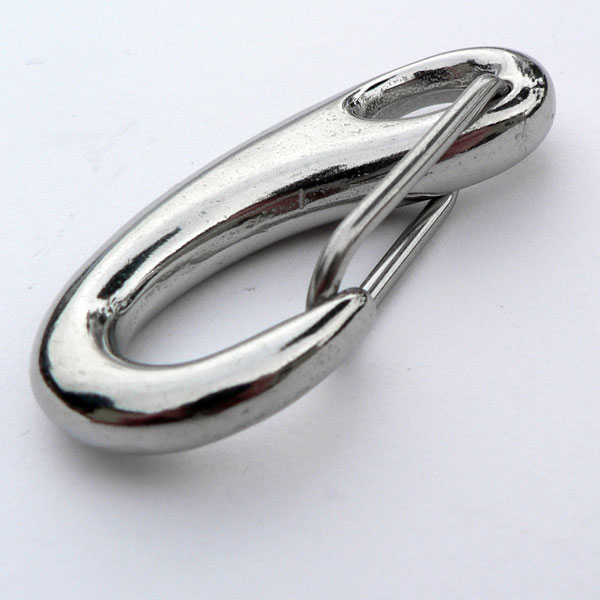

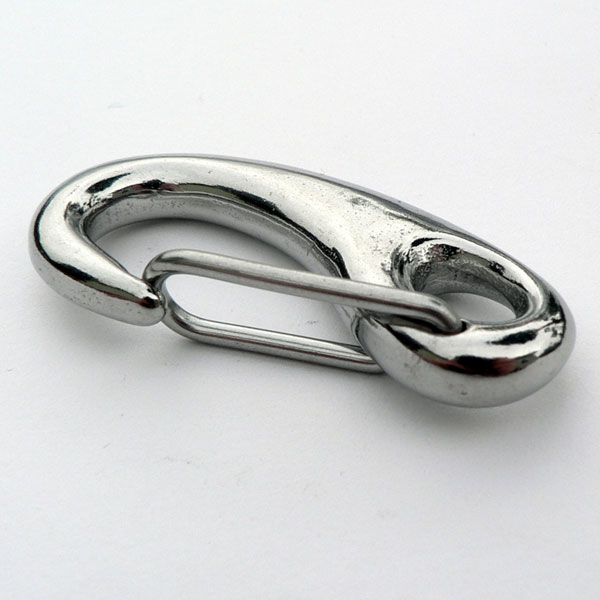

Spring Gate Snap

Model: BPS0161-0xxx

This simple yet elegantly designed clip has been a favorite for boaters for years. Unlike most other clips which have tiny springs and hinge pins which are prone to ultimate failure, this clip consists of only two parts; the hooked body and a robust round wire torsion spring. Open and closed many times daily, the spring gate to this clip will still have a great snap to it 10 or 20 years later!

See also our Titanium Gate Snap.

[]

[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Gate Snap 2" $4.60
Gate Snap 2-3/4" $7.39
Gate Snap 3-3/4" $14.50
In Stock - Usually ships in 1-2 business days. Add to Cart
[]
DIMENSIONS
part diagram ITEM A B C D WLL WT
S0161-0050 2" 0.38" 0.40" 0.25" 150 0.05
S0161-0070 2-3/4" 0.42" 0.61" 0.39" 350 0.13
S0161-0100 3-3/4" 0.55" 0.87" 0.59" 500 0.32

DETAILS

  • 316 Stainless Steel, Precision Cast
  • Manufactured by Suncor Stainless

[]
[]
