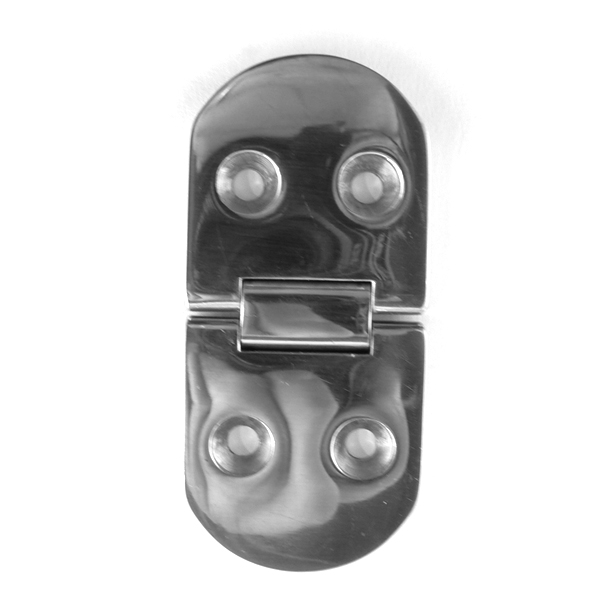

Heavy Duty Flush Table Hinge

Model: S3830-0001, S3830-0002

Exclusive flush design can move 360 degrees. One half folds flat on top of other half. Ideal for tables, doors and other applications where recessed hinges allow a totally flat surface. Use 4 #8 fasteners.

[]
[]
[] []
[] []
Stainless Steel Facts
See our All About Stainless Guide to learn about the materials from which these parts are made.
[]
[]
[] []
[] []
Hardware Terms
See our guide to hardware terminology. It'll help you sort out all the acronyms on our site.
[]
[] []
[] []
Suggested Tools
These tools and materials are suggested for installation.


Heavy Duty Flush Table Hinge, 3" $10.62
In Stock - Usually ships in 1-2 business days. Add to Cart
Learn More:  Product Details | Accessories | Tools and Installation Materials
[]
DIMENSIONS
part diagram ITEM A B C D E WT
S3833-0001 3-1/4" 1.49" 0.20" 1.60" 0.73" 0.20

DETAILS

  • 316 Stainless Steel, Cast
  • Manufactured by Suncor Stainless
[]
